DM 1550nm transmitter
HT1500B
Data Sheet
Technical index
Performance
Index
Supplement
Optic feature
Wavelength
(nm)
1548~1563
HT1500BC: CATV wavelength
1530~1563
HT1500BU: ITU wavelength
Linewidth
(MHz)
≤1
FWHM(△λ)
Side mode suppression ratio
(dB)
≥45
SMSR
Extinction ratio
(dB)
≥20
Xp
Equivalent noise intensity
(dB/Hz)
≤-160
RIN (20~1000MHz)
Output power
(dBm)
6
Optional 3, 10
Return loss
(dB)
≥55
optical fiber connector
FC/APC
Optional SC/APC
RF feature
Work bandwidth
(MHz)
45-862
Input level
(dBmV)
20
±2
Flatness
(dB)
≤±0.75
45~862MHz
Return loss
(dB)
>16
Input impedance
(Ω)
75
RF/INPUT
RF test
(dB)
0±1
Link feature
Transmit channel
PAL-D/59CH
NTSC/77CH
CNR
(dB)
≥50
-1dBm receive
CTB
(dB)
≤-63
CSO
(dB)
≤-57
SBS restrain
(dBm)
≥17
General feature
Network management interface
RJ45, RS232
Support I.E. & SNMP
Power supply
(V)
90~265 city power
-48VDC optional
Power Consume
(W)
≤50
Single power works
Work temp.
(℃)
-5~65
Storage temp.
(℃)
-40~85
Relative humidity
(%)
5~95
Size (W)x(D)x(H)
19×14.2×1.75 ( " )
483×360×44 ( mm )
Product series
Model
Distance(Km)
Output power(dBm)
CNR(dB)
CTB(dB)
CSO(dB)
SBS(dBm)
HT1503B-05
5
3
50
-63
-57
17
HT1506B-05
6
50
-63
-57
17
HT1510B-05
10
50
-63
-57
17
HT1503B-10
10
3
50
-63
-57
17
HT1506B-10
6
50
-63
-57
17
HT1510B-10
10
50
-63
-57
17
HT1503B-15
15
3
50
-63
-57
17
HT1506B-15
6
50
-63
-57
17
HT1510B-15
10
50
-63
-57
17
Test condition: 1. 47~550MHz, PAL-D/59CH.
2. -1dBm input receiver.

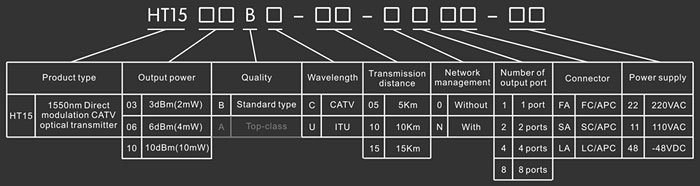

Model explanation
The parts marked in gray color belongs to other varieties of this product series, the options marked in gray color in this products series can not be specified.
