HES-55S
4-Band SAT-IF Overlay
Externally Modulated Optical Transmitter |
|
|
|
|
|
| |
 Technical index |
| |
Performance |
Min. |
Typ. |
Max. |
Supplement |
Optical
feature |
Operating wavelegnth |
(nm) |
1528 |
|
1563 |
0C |
| Wavelength adjustable range |
(nm) |
-1.6 |
|
+1.6 |
|
| Wavelength adjustable mode |
(nm) |
±0.01 stepping |
|
| Side mode suppression ratio |
(dB) |
45 |
|
|
|
| Extinction Ratio |
(dB) |
20 |
|
|
|
| Linewidth |
(dB/Hz) |
|
0.65 |
1 |
|
| Equivalent noise intensity |
(dB/Hz) |
145 |
|
|
To 5500MHz |
| Output ports |
|
1 |
|
4 |
|
| Each port output power |
(dBm) |
3 |
|
|
1×03, 2×03, 4×03 |
5 |
|
|
1×05, 2×05, 4×05 |
7 |
|
|
1×07, 2×07 |
9 |
|
|
1×09 |
10 |
|
|
1×10 |
| SBS |
(dBm) |
13 |
|
|
P2P, 60Km fiber |
| Return loss |
(dB) |
50 |
|
|
APC |
| Optical connector |
|
SC/APC |
Option FC/APC, LC/APC |
RF
feature |
Typical application |
(MHz) |
950 |
|
5500 |
|
| Frequency response |
(dB) |
-1.5 |
|
+1.5 |
950~5500MHz |
| IM2 |
(dB) |
40 |
|
|
2 tone measurement, OMI=20% per carrier |
| IM3 |
(dB) |
40 |
|
|
| Input level |
(dBmv) |
|
-20 |
|
Nominal input level |
| Input impedence |
(Ω) |
|
50 |
|
|
| RF return loss |
(dB) |
8 |
|
|
|
| RF connector |
|
SMA-Female |
|
General feature |
SNMP network management interface |
|
RJ45 |
|
| Communication interface |
|
RS232 |
|
| Power supply |
AC |
(V) |
90 |
220 |
265 |
|
DC |
-30 |
-48 |
-72 |
|
| Power consume |
(W) |
|
|
50 |
|
| Operating temp. |
(℃) |
-5 |
|
+65 |
|
| Storage temp. |
(℃) |
-40 |
|
+85 |
|
| Relative humidity |
(%) |
5 |
|
95 |
|

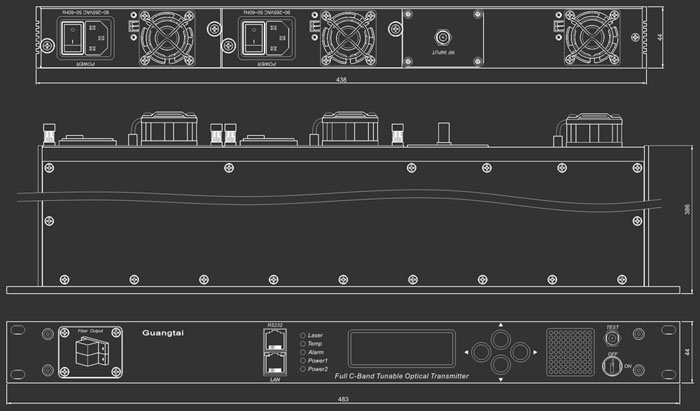

| Size (W)×(D)×(H) |
|
19×14.5×1.75 ( " )
483×368×44 ( mm )
|
|
 Chassis length  Optical port on fornt panel
Optical port on back panel
Product series
Model |
Operating Bandwidth |
Optical output port |
Each port output power |
HES-55S-1×03-口口 |
950~5500MHz |
1 |
3dBm |
HES-55S-1×05-口口 |
1 |
5dBm |
HES-55S-1×07-口口 |
1 |
7dBm |
HES-55S-1×09-口口 |
1 |
09dBm |
HES-55S-1×10-口口 |
1 |
10dBm |
HES-55S-2×03-口口 |
950~5500MHz |
2 |
3dBm |
HES-55S-2×05-口口 |
2 |
5dBm |
HES-55S-2×06-口口 |
2 |
6dBm |
HES-55S-4×03-口口 |
950~5500MHz |
4 |
3dBm |
Remarks: Work wavelength: 0C: 1528~1563nm
|
Model explanation |
| |
The parts marked in gray color belongs to other varieties of this product series, the options marked in gray color in this products series can not be specified. |
|
|
|
|
|
|
 |
