HRS-26A
47~862MHz & 950~2600MHz
Satellite TV & Analog TV PIN optical receiver
  HRS-26A Product Photos Download Data Sheet
Products FTTH for satellite TV HRS-26A Data Sheet

Technical index

Performance
Index
Supplement
Min.
Typ.
Max.
Optical feature Operating wavelength
(nm)
1260

1620
HRS-26A-H2-00-×××
1540

1563
HRS-26A-H2-WD-×××
Pass wavelength
(nm)

1310/1490

HRS-26A-H2-WD-×××
Responsivity
R13
(A/W)
0.9

1310nm
R15
0.95

1550nm
Receiving optical power
Typical
(dBm)
-8

+2

Sensitivity

-13
Pr
Overload
+5

Po
Return loss
(dB)
50

Optical connector
SC/APC
Option LC/APC
RF feature
Operating bandwidth
(MHz)
47

862

Output level
(dBmV)
10

30

Flatness
(dB)
-0.75

+0.75

Return loss
(dB)
16

47~862MHz
Output impedance
(Ω)

75

47~862MHz
RF connector
F-female

Channel loading
PAL-D/60CH

CNR
1310nm
(dB)
51

1550nm
50

CTB
1310nm
(dB)
-65

1550nm
-63

CSO
1310nm
(dB)
-63

1550nm
-53

IF feature
 Operating bandwidth
(MHz)
950
2200
2600

Output level
(dBmV)
-40

+24

Flatness
(dB)
-0.5

+0.5
40MHz
-1.5

+1.5
950~2200MHz
Return loss
(dB)
12

Output impedance
(Ω)

75

Option 50Ω
IF connector
F-female

IM3
(dB)
-65

HUM
(dB)
-60

General feature
SNMP network management interface
RJ45
HRS-26A-XX-108
Communication interface
RS232
HRS-26A-XX-108
Power supply
AC
(V)
90
220
265
HRS-26A-XX-108
DC

5

HRS-26A-XX-208
DC

12
   HRS-26A-XX-308
Power consume
(W)

10
Single PS
Operating temp.
(℃)
-5

+65

Storage temp.
(℃)
-40

+85

Relative humidity
(%)
5

95

Size (W)x(D)x(H)
19×14.5×1.75 ( " )
483×368×44 ( mm )
HRS-26A-XX-108

2.3×3.9×0.9 ( " )
59×98×23 ( mm )
HRS-26A-XX-208

4.6×2.8×1.1 ( " )
117×72×29 ( mm )
HRS-26A-XX-308
Product series

Model
Receiving sensitivity
Exterior structure
WDM
HRS-26A-H2-00-108
-8dBm
19" 1RU
None
HRS-26A-H2-WD-108
-8dBm
19" 1RU
Build-in WD1543
HRS-26A-H2-00-208
-8dBm
Desktop
None
HRS-26A-H2-WD-208
-8dBm
Desktop
Build-in WD1543
HRS-26A-H2-00-308
-8dBm
Wall-mounted
None
HRS-26A-H2-WD-308
-8dBm
Wall-mounted
Build-in WD1543

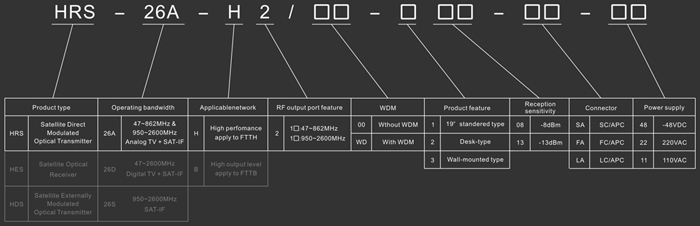

Model explanation

The parts marked in gray color belongs to other varieties of this product series, the options marked in gray color in this products series can not be specified.
