HRS-26D/P
47~2600MHz
Digital TV & Satellite TV PIN optical receiver
HRS-26D/P
Product Photos
Download
Data Sheet
Products
FTTH for satellite TV
HRS-26D/P
Data Sheet
Technical index
Performance
Index
Supplement
Min.
Typ.
Max.
Optical feature
Operating wavelength
(nm)
1260
1620
HRS-26D/P-×××-00
1540
1563
HRS-26D/P-×××-WD
Pass wavelength
(nm)
1310/1490
HRS-26D/P-×××-WD
Responsibility
R13
(A/W)
0.9
1310nm
R15
0.95
1550nm
Receiving optical power
Typical
(dBm)
-13
Sensitivity
-22
Pr
Overload
+3
Po
Optical Receiving PD
PIN
Return loss
(dB)
50
Optical connector
SC/APC or LC/APC
IF feature
Operating bandwidth
(MHz)
47
2600
Output level
(dBmV)
10
30
Flatness
(dB)
-1.0
+1.0
47~860MHz
-0.5
+0.5
40MHz
-1.5
+1.5
950~2400MHz
Output return loss
(dB)
14
47~860MHz
12
950~2400MHz
Channel loading
(CH)
10
Analogue TV
64QAM
Digital TV
36
QPSK or FM
IM3
(dB)
-65
HUM
(dB)
-60
IP1
(dBm)
18
Impedance
(Ω)
75
Option 50Ω
RF connector
F-female
75Ω
SMA-F
50Ω
General feature
SNMP interface
RJ45
HRS-26D/P-113
Communication interface
RS232
HRS-26D/P-113
Power supply
AC
(V)
90
220
265
DC
-30
-48
-72
Power consume
(W)
5
Single PS
Operating temp.
(℃)
-5
+65
Storage temp.
(℃)
-40
+85
Relative humidity
(%)
5
95
Size
19×14.5×1.75 ( " )
483×368×44 ( mm )
HRS-26D/P-113
2.3×3.9×0.9 ( " )
59×98×23 ( mm )
HRS-26D/P-213
4.6×2.8×1.1 ( " )
117×72×29 ( mm )
HRS-26D/P-313
5.9×5.3×3.9 ( " )
150×135×98 ( mm )
HRS-26D/P-913
Product series
Model number
Optical receiver PD type
Typical value of receiving power
Exterior structure
CWDM
HRS-26D/P-113-00
PIN
-13dBm
19" 1RU
None
HRS-26D/P-213-00
PIN
-13dBm
Desktop
None
HRS-26D/P-213-WD
PIN
-13dBm
Desktop
Built-in WDM
HRS-26D/P-313-00
PIN
-13dBm
Wall-mounted
None
HRS-26D/P-313-WD
PIN
-13dBm
Wall-mounted
Built-in WDM
HRS-26D/P-913-00
PIN
-13dBm
Outdoor rainproof
None

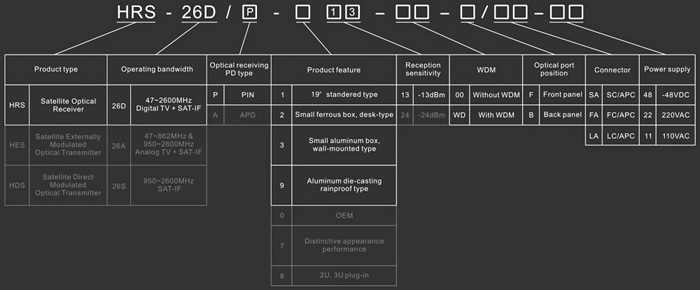

Model explanation
The parts marked in gray color belongs to other varieties of this product series, the options marked in gray color in this products series can not be specified.
