BiDi-C1000 (CWDM)
Bi-Directional-Coaxial LD/PD Module
  BiDi-C1000 Product Photos Download Data Sheet

Technical index

Performance
Index
Supplement
Min
Typ
Max
Transmit
Center wavelength    (λc)
(nm)
1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610
CWDM
Laser Type
DFB

Center wavelength accuracy   (Ith)
(nm)
-1.5

+1.5

Threshold current   (Ith)
(mA)

5
15
λnm,25°C
Spectral width   (Δλ)
(nm)

1
2
CW,Ith+20mA
Output power  (Po)
(dBm)

2.0

CW,Ith+20mA,λnm

Operating voltage    (Vop)

(V)

1.1
1.5
CW,Ith+20mA
Rise/ Fall time    (Tr/Tf)
(ns)

0.3
0.7
CW,Ith+20mA
Monitor current    (Imf)
(mA)
0.1
0.7

CW,Ith+20mA
Receiver Detection range   (λc)
(nm)
1100

1650
CWDM wavelength
Responsivity   (R)
(A/W)
0.7
0.9

VR=5V,λ=1550 nm
Dark current   (Id)
(ps)

0.1
2
VR=5V,25°C
Saturation power  (Pmax)
(dBm)
3

VR=5V,25°C
Rise and Fall time    (Tr/Tf)
(ns)

0.1

RL=50Ω
Reverse Voltage    (VR)
(V)

1.5

Capacitance   (Ct)
(pF)

0.9
1.0
VR=5V
General feature
Return Loss
(dB)
50

Connector
APC

Fiber Type
SMF28 900 μ m

Optical fiber length
(m)
0.5
0.8
1.5

Limit value
Storage temperature  (Tst)
(℃)
-40

+100

Operating temperature  (Top)
(℃)
-40

+85

Reverse voltage  (V R)
(V)

2
CW
Soldering temperature/time
(°C /S)

260/10

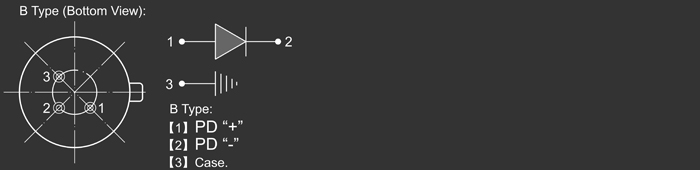

PIN Defination

Transmit
Receiver

Product series

Model
CWDM Tx Operating Wavelength (nm)
Output Power
(dBm)
Laser Type
BiDi-C1xxx-3 / DI
1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610
2~3
DFB WIth ISO
BiDi-C1xxx-3 / DO
DFB Without ISO

Model explanation
