HA5400C    (3RU)
High-power Multi-ports output CATV EDFA (1540~1563nm)
  HA5400C Product Photos Download Data Sheet
Products 1550nm EDFA HA5400C Data Sheet

Technical index

Performance
Index
Supplement
Min.
Typ.
Max.
Optical feature
Operating wavelength range
(nm)
1540

1563
CATV
Input power
(dBm)
-10

 +10

Total output power
(dBm)

45

Number of output port
(pcs)


256

Each output power
(dBm)
0

22

Difference of each output power
(dB)
-0.5

+0.5

Output optical power monitoring
(dB)

-20

Optional
Output power adjustable range
(dBm)
-6

0
Optional
Noise figure (Pin=0dBm)
(dB)

4.5
5.5
HA5400C-1x口口口

5.0
6.0
HA5400C-2x口口口
Switching time
(ms)

8.0
HA5400C-2x口口口
Polarization dependence loss
(dB)

0.3

Polarization dependence gain
(dB)


0.4

Polarization mode dispersion
(ps/nm)


0.3

Input/output isolation
(dB)
30

Pump power leakage
(dBm)

-30

Echo loss
(dB)
55


APC
General feature
Serial interface

RS232

SNMP network management interface
RJ45

Power supply
(V)
90

265
220VAC
30

72
-48VDC
Power consume
(W)

189

Work temp.
( ℃ )
-5

65

Storage temp.
( ℃ )
-40

80

Relative humidity
(%)
5

95

Size (W) × (D) × (H)
( " )
19 × 14.7 × 5.25 ( " )
3RU ( 19'' )
Remark: The output power of EDFA can be customized by user.

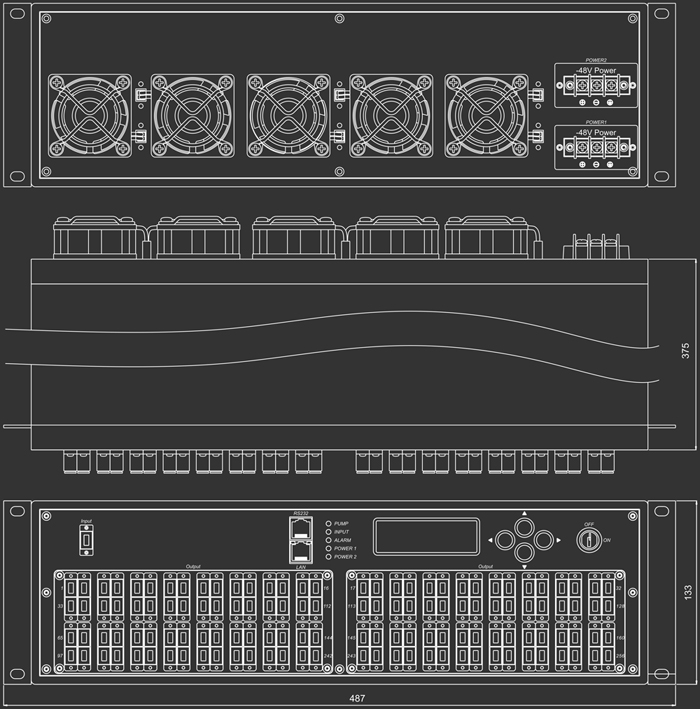

Chassis size chart
Product series

Model
Total output power
Number of output
Each port output power
Connector
HA5439C-1×032
39dBm ( 8000mW )
32
21.5
SC/APC, LC/APC
HA5439C-2×032
HA5439C-1×064
64
18.0
HA5439C-2×064
HA5440C-1×064
 40dBm ( 10000mW )
64
19.0
SC/APC, LC/APC
HA5440C-2×064
HA5440C-1×128
128
15.5
HA5440C-2×128
HA5441C-1×064
41dBm ( 13000mW )
64
20.0
SC/APC, LC/APC
HA5441C-2×064
HA5441C-1×128
128
16.5
HA5441C-2×128
HA5442C-1×064
 42dBm ( 16000mW )
64
21.0
SC/APC, LC/APC
HA5442C-2×064
HA5442C-1×128
128
17.5
HA5442C-2×128
HA5443C-1×064
 43dBm ( 20000mW)
64
22.0
 SC/APC, LC/APC
HA5443C-2×064
HA5443C-1×128
128
18.5
HA5443C-2×128
HA5444C-1×128
 44dBm ( 25000mW )
128
19.5
 SC/APC, LC/APC
HA5444C-2×128
HA5444C-1×256
256
16.0
 LC/APC
HA5444C-2×256
HA5445C-1×128
 45dBm ( 32000mW )
128
20.5
 SC/APC, LC/APC
HA5445C-2×128
HA5445C-1×256
256
17.0
 LC/APC
HA5445C-2×256
Remark: Please contact with Huatai for detailed datasheet of EDFA if special output power and output ports configuration is                  required.

Model explanation
