HA5400E    (5RU)
High-power Multi-ports output CATV EDFA (1540~1563nm)
  HA5400E Product Photos Download Data Sheet
Products 1550nm EDFA HA5400E Data Sheet

Technical index

Performance
Index
Supplement
Min.
Typ.
Max.
Optical feature
Operating wavelength range
(nm)
1540

1563
CATV
Input power
(dBm)
-10

 +10

Total output power
(dBm)

49

Number of output port
(pcs)


512

Each output power
(dBm)
0

22

Difference of each output power
(dB)
-0.5

+0.5

Output optical power monitoring
(dB)

-20

Optional
Output power adjustable range
(dBm)
-6

0
Optional
Noise figure (Pin=0dBm)
(dB)

4.5
5.5
HA5400E-1x口口口

5.0
6.0
HA5400E-2x口口口
Switching time
(ms)

8.0
HA5400E-2x口口口
Polarization dependence loss
(dB)

0.3

Polarization dependence gain
(dB)


0.4

Polarization mode dispersion
(ps/nm)


0.3

Input/output isolation
(dB)
30

Pump power leakage
(dBm)

-30

Echo loss
(dB)
55


APC
General feature
Serial interface

RS232

SNMP network management interface
RJ45

Power supply
(V)
90

265
220VAC
30

72
-48VDC
Power consume
(W)

289

Work temp.
( ℃ )
-5

65

Storage temp.
( ℃ )
-40

80

Relative humidity
(%)
5

95

Size (W) × (D) × (H)
( " )
19 × 14.7 × 8.25 ( " )
5RU ( 19'' )
Remark: The output power of EDFA can be customized by user.

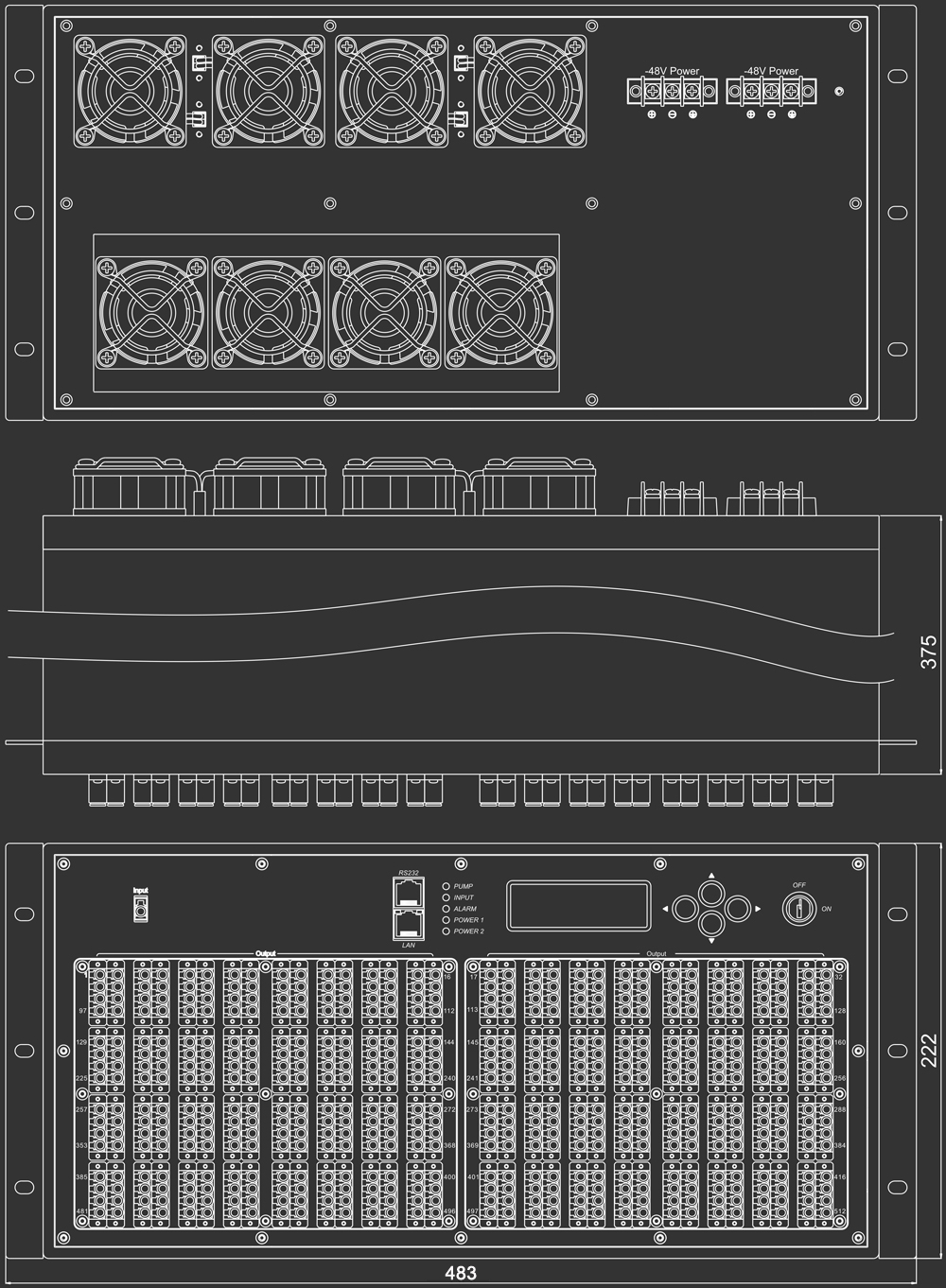

Chassis size chart

Product series

Model
Total output power
Number of output
Each port output power
Connector
HA5446E-1×128
 46dBm ( 40000mW )
128
21.5
 SC/APC, LC/APC
HA5446E-2×128
HA5446E-1×256
256
18.0
HA5446E-2×256
HA5447E-1×256
 47dBm ( 50000mW )
256
19.0
 SC/APC, LC/APC
HA5447E-2×256
HA5447E-1×512
512
15.5
 LC/APC
HA5447E-2×512
HA5448E-1×256
 48dBm ( 64000mW )
256
20.0
 SC/APC, LC/APC
HA5448E2×256
HA5448E-1×512
512
16.5
 LC/APC
HA5448E-2×512
HA5449E-1×256
 49dBm ( 80000mW )
256
21.0
 SC/APC, LC/APC
HA5449E-2×256
HA5449E-1×512
512
17.5
 LC/APC
HA5449E-2×512
Remark: 2. Please contact with Huatai for detailed datasheet of EDFA if special output power and output ports configuration is.
required

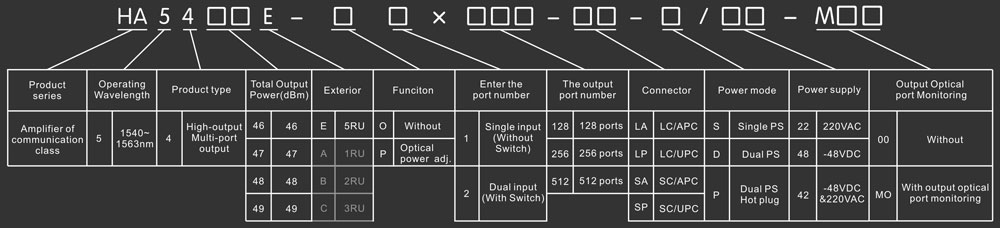

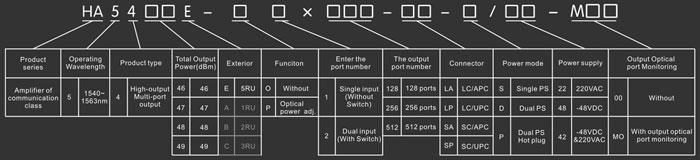

Model explanation
