HA5800A   (1RU)
FTTx PON Optical Amplifier (1540~1563nm)
  HA5800A Product Photos Download Data Sheet
Products 1550nm Optical Amplifier HA5800A Data Sheet

Technical index

Performance
Index
Suplement
Min.
Typ.
Max.
Optical feature
CATV Operation wavelength
(nm)
1540

1563
 CATV
OLT pass wavelength
(nm)

1310/1490


CATV pass wavelength loss
(dB)


0.8
1550nm
OLT pass wavelength loss
(dB)


0.8
1310/1490nm
CATV & OLT isolation
(dB)
40



Number of uplink optical ports
( for olt)
(pcs)

16

CATV input power( Pi )
(dBm)
-10

 +10

Total output power1)
(dBm)

37

Number of output ports
(pcs)

16

Each port output power
(dBm)
0

 22

Difference of each output power
(dB)
-0.5

+0.5


Output optical power monitoring

(dB)
   -20
 Optional
Output power adjustable range
(dBm)
-6

0
 Optional
Noise figure
(dB)
   4.5
5.5
HA5800A-1x口口口

5.0
6.0
HA5800A-2x口口口
Switch time
(ms)


8.0
HA5800A-2x口口口
Polarization dependance loss
(dB)


0.3

Polarization dependance gain
(dB)

0.4

Polarization mode dispersion
(ps/nm)


0.3

Input/output isolation
(dB)
30

Pump power leakage
(dBm)


-30

Echo loss
(dB)
55


APC

General featre
Serial interface

RS232

Network management interface
RJ45

Power supply
(V)
90

265
220VAC
30

72
-48VDC
Power consume
(W)


50

Operation temp.
( ℃ )
-5

65

Storage temp.
( ℃ )
-40

80

Relative humidity
(%)
5

95

Size (W) × (D) × (H)
( " )
19 × 14.5 × 1.75 ( " )
HA5800A ( 1RU )
Chassis size


Product series

Model
Total output power
Number of output
Each port output power
Connector
HA5827A-1×008
27dBm ( 500mW )
8
16.0
SC/APC, LC/APC
HA5827A-2×008
HA5828A-1×008
28dBm ( 630mW )
8
17.0
SC/APC, LC/APC
HA5828A-2×008
HA5829A-1×008
29dBm ( 800mW )
8
18.0
SC/APC, LC/APC
HA5829A-2×008
HA5830A-1×008
30dBm ( 1000mW )
8
19.0
SC/APC, LC/APC
HA5830A-2×008
HA5830A-1×016
16
15.5
LC/APC
HA5830A-2×016
HA5831A-1×008
31dBm ( 1260mW )
8
20.0
SC/APC, LC/APC
HA5831A-2×008
HA5831A-1×016
16
16.5
LC/APC
HA5831A-2×016
HA5832A-1×008
32dBm ( 1600mW )
8
21.0
SC/APC, LC/APC
HA5832A-2×008
HA5832A-1×016
16
17.5
LC/APC
HA5832A-2×016
HA5833A-1×008
33dBm ( 2000mW )
8
22.0
SC/APC, LC/APC
HA5833A-2×008
HA5833A-1×016
16
18.5
LC/APC
HA5833A-2×016
HA5834A-1×008
34dBm ( 2500mW )
8
23
SC/APC, LC/APC
HA5834A-2×008
HA5834A-1×016
16
19.5
LC/APC
HA5834A-2×016
HA5835A-1×008
35dBm ( 3200mW )
8
24
SC/APC, LC/APC
HA5835A-2×008
HA5835A-1×016
16
20.5
LC/APC
HA5835A-2×016
HA5836A-1×008
36dBm(4000mW)
8
25
SC/APC, LC/APC
HA5836A-2×008
HA5836A-1×016
16
21.5
LC/APC
HA5836A-2×016
HA5837A-1×008
37dBm(5000mW)
8
26
SC/APC, LC/APC
HA5837A-2×008
HA5837A-1×016
16
22.5
LC/APC
HA5837A-2×016
Note: the above is the standard options, the output port number or each port output power can be customized.

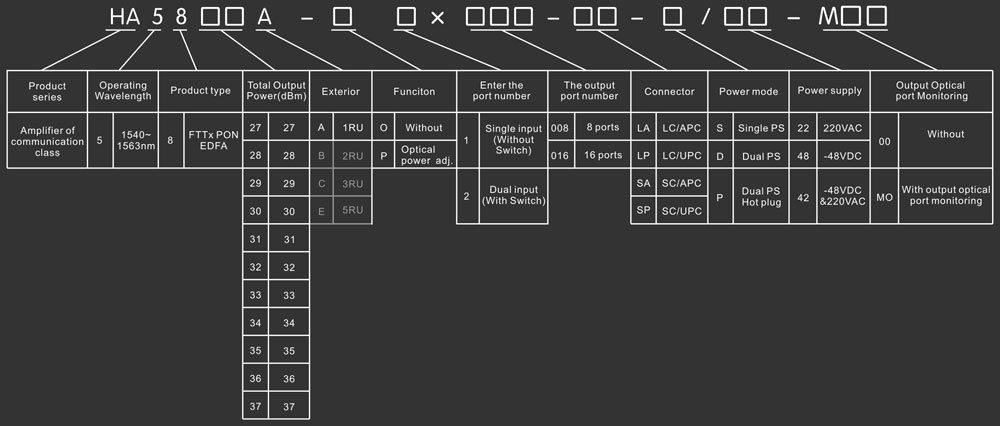

Model explanation
