HA5800E   (5RU)
FTTx PON Optical Amplifier (1540~1563nm)
  HA5800E Product Photos Download Data Sheet

Technical index

Performance
Index
Suplement
Min.
Typ.
Max.
Optical feature
CATV Operation wavelength
(nm)
1540

1563
 CATV
OLT pass wavelength
(nm)

1310/1490


CATV pass wavelength loss
(dB)


0.8
1550nm
OLT pass wavelength loss
(dB)


0.8
1310/1490nm
CATV & OLT isolation
(dB)
40



Number of uplink optical ports
( for olt)
(pcs)

256

CATV input power( Pi )
(dBm)
-10

 +10

Total output power1)
(dBm)

49

Number of output ports
(pcs)

256

Each port output power
(dBm)
0

 22

Difference of each output power
(dB)
-0.5

+0.5


Output optical power monitoring

(dB)
  -20
 Optional
Output power adjustable range
(dBm)
-6

0
 Optional
Noise figure
(dB)
  4.5
5.5
HA5800E-1x口口口

5.0
6.0
HA5800E-2x口口口
Switch time
(ms)


8.0
HA5800E-2x口口口
Polarization dependance loss
(dB)


0.3

Polarization dependance gain
(dB)

0.4

Polarization mode dispersion
(ps/nm)


0.3

Input/output isolation
(dB)
30

Pump power leakage
(dBm)


-30

Echo loss
(dB)
55


APC

General featre

Serial interface

RS232

Network management interface
RJ45

Power supply
(V)
90

265
220VAC
30

72
-48VDC
Power consume
(W)


289

Operation temp.
( ℃ )
-5

65

Storage temp.
( ℃ )
-40

80

Relative humidity
(%)
5

95

Size (W) × (D) × (H)
( " )
19 × 14.7 × 8.75 ( " )
HA5800( 5RU)

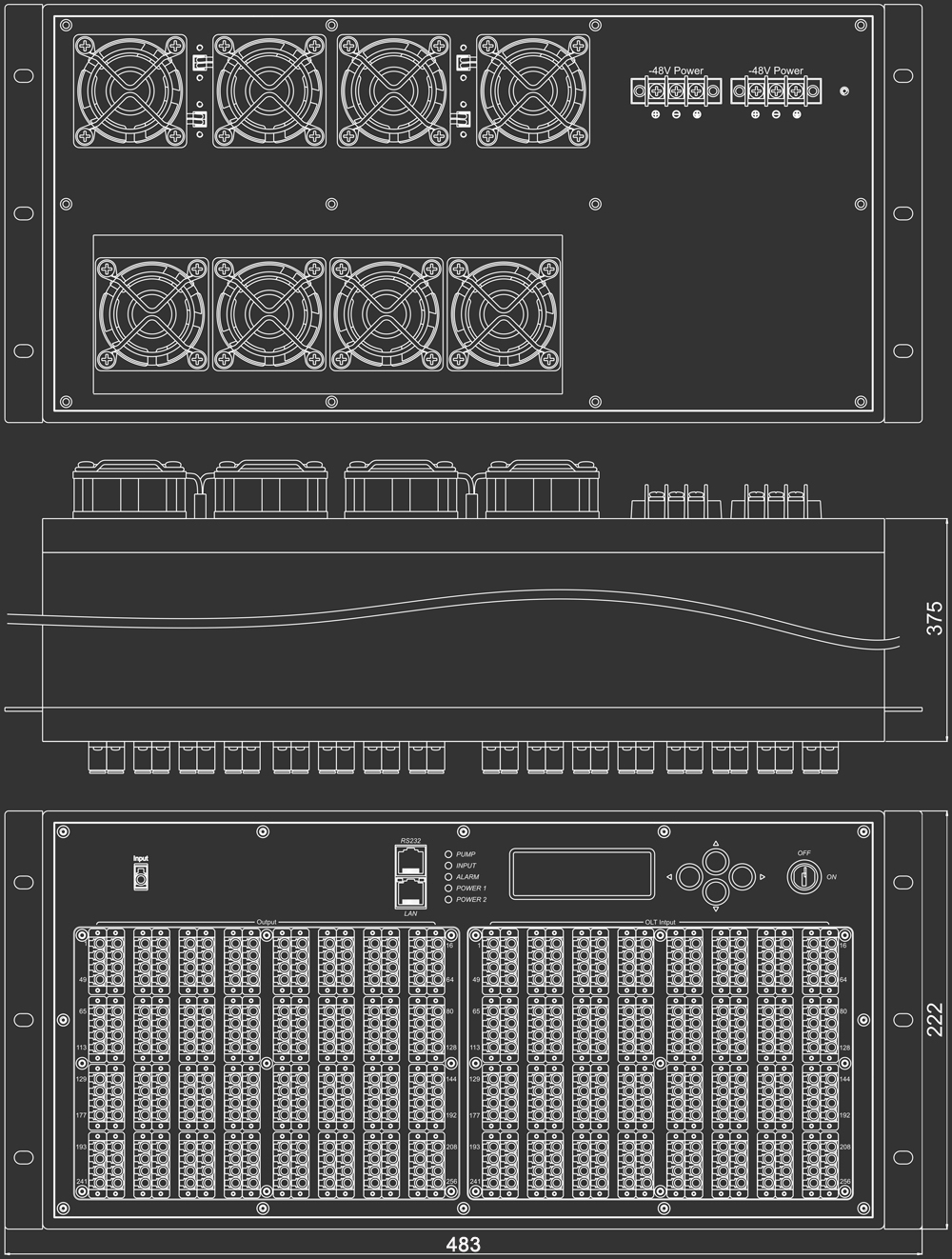

Chassis size


Product series

Model
Total output power
Number of output
Each port output power
Connector
HA5844E-1x256
44dBm ( 25000mW )
256
15.5
LC/APC
HA5844E-2x256
HA5845E-1x256
45dBm ( 32000mW )
256
16.5
LC/APC
HA5845E-2x256
HA5846E-1x128
46dBm ( 40000mW )
128
21.0
SC/APC, LC/APC
HA5846E-2x128
HA5846E-1x256
256
17.5
LC/APC
HA5846E-2x256
HA5847E-1x128
47dBm ( 50000mW )
128
22.0
SC/APC, LC/APC
HA5847E-2x128
HA5847E-1x256
256
18.5
LC/APC
HA5847E-2x256
HA5848E-1x256
48dBm ( 64000mW )
256
19.5
LC/APC
HA5848E-2x256
HA5849E-1x256
49dBm ( 80000mW )
256
20.5
LC/APC
HA5849E-2x256
Note: the above is the standard options, the output port number or each port output power can be customized.

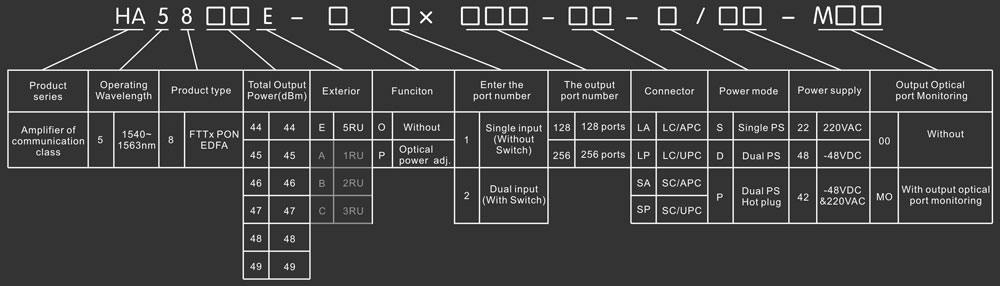

Model explanation
