HA5400
High-power Multi-ports output CATV EDFA (1540~1563nm)
|
|
|
|
|
|
| |
 Technical index |
| |
Performance |
Index |
Supplement |
Min. |
Typ. |
Max. |
Optical feature |
Operating wavelength range |
(nm) |
1540 |
|
1563 |
CATV |
Input power |
(dBm) |
-10 |
|
+10 |
|
Typical output power |
(dBm) |
0 |
|
|
|
Total output power |
(dBm) |
|
|
35 |
1U |
| |
|
38 |
2U |
| |
|
45 |
3U |
| |
|
49 |
5U |
Number of output port |
(pcs) |
|
|
32 |
1U |
| |
|
128 |
2U |
| |
|
256 |
3U |
| |
|
512 |
5U |
Difference of each output power |
(dB) |
-0.5 |
|
+0.5 |
|
| Output power adjustable range |
(dBm) |
-6 |
|
0 |
|
Noise figure (Pin=0dBm) |
(dB) |
|
4.5 |
5.0 |
HA5437 |
| Polarization dependence loss |
(dB) |
|
|
0.3 |
|
Polarization dependence gain |
(dB) |
|
|
0.4 |
|
Polarization mode dispersion |
(ps/nm) |
|
|
0.3 |
|
| Input/output isolation |
(dB) |
30 |
|
|
|
Pump power leakage |
(dBm) |
|
|
-30 |
|
Echo loss |
(dB) |
55 |
|
|
APC |
General feature |
Serial interface |
|
RS232 |
|
| SNMP network management interface |
|
RJ45 |
|
Power supply |
(V) |
90 |
|
265 |
220VAC |
30 |
|
72 |
-48VDC |
Power consume |
(W) |
|
|
360 |
HA5449E |
Work temp. |
( ℃ ) |
-5 |
|
65 |
|
Storage temp. |
( ℃ ) |
-40 |
|
80 |
|
Relative humidity |
(%) |
5 |
|
95 |
|
Size (W) × (D) × (H) |
( " ) |
19 × 14.3 × 1.75 ( " )
|
1RU ( 19'' ) |
19 × 14.7 × 3.5 ( " )
|
2RU( 19'' ) |
|
19 × 14.7 × 5.25 ( " ) |
3RU( 19''） |
| 19 × 14.7 × 8.25 ( " ) |
5RU（19''） |
Remark: The output power of EDFA can be customized by user.
机箱尺寸 产品系列 |
|
| Product series |
| |
Model |
Total output power |
Number of output |
Each port output power |
Connector |
HA5427A-08 |
27dBm(500mW) |
8 |
16.5 |
SC/APC、LC/APC |
HA5428A-08 |
28dBm(630mW) |
8 |
17.5 |
SC/APC、LC/APC |
HA5429A-08 |
29dBm(800mW) |
8 |
18.5 |
SC/APC、LC/APC |
HA5429A-16 |
16 |
15.0 |
HA5430A-08 |
30dBm(1000mW) |
8 |
19.5 |
SC/APC、LC/APC |
HA5430A-16 |
16 |
16.0 |
HA5431A-08 |
31dBm(1260mW) |
8 |
20.5 |
SC/APC、LC/APC |
HA5431A-16 |
16 |
17.0 |
HA5432A-08 |
32dBm(1600mW) |
8 |
21.5 |
SC/APC、LC/APC |
HA5432A-16 |
16 |
18.0 |
HA5433A-16 |
33dBm(2000mW) |
16 |
19.0 |
SC/APC、LC/APC |
HA5433A-32 |
32 |
15.5 |
LC/APC |
HA5434A-16 |
34dBm(2500mW) |
16 |
20.0 |
SC/APC、LC/APC |
HA5434A-32 |
32 |
16.5 |
LC/APC |
HA5435A-16 |
35dBm(3200mW) |
16 |
21.0 |
SC/APC、LC/APC |
HA5435A-32 |
32 |
17.5 |
LC/APC |
HA5436B-16 |
36dBm(4000mW) |
16 |
22.0 |
SC/APC、LC/APC |
HA54336B-32 |
32 |
18.5 |
SC/APC、LC/APC |
HA5436B-64 |
64 |
15.0 |
LC/APC |
HA5437B-32 |
37dBm(5000mW) |
32 |
19.5 |
SC/APC、LC/APC |
HA5437B-64 |
64 |
16.0 |
LC/APC |
HA5438B-32 |
38dBm(6300mW) |
32 |
20.5 |
SC/APC、LC/APC |
HA5438B-64 |
64 |
17.0 |
LC/APC |
HA5439C-32 |
39dBm(8000mW) |
32 |
21.5 |
SC/APC、LC/APC |
HA5439C-64 |
64 |
18.0 |
HA5440C-64 |
40dBm(10000mW) |
64 |
19.0 |
SC/APC、LC/APC |
HA5440C-128 |
128 |
15.5 |
HA5441C-64 |
41dBm(13000mW) |
64 |
20.0 |
SC/APC、LC/APC |
HA5441C-128 |
128 |
16.5 |
HA5442C-64 |
42dBm(16000mW)
|
64 |
21.0 |
SC/APC、LC/APC |
HA5442C-128 |
128 |
17.5 |
HA5443C-64 |
43dBm(20000mW) |
64 |
22.0 |
SC/APC、LC/APC |
HA5443C-128 |
128 |
18.5 |
HA5444C-128 |
44dBm(25000mW) |
128 |
19.5 |
SC/APC、LC/APC |
HA5444C-256 |
256 |
16.0 |
LC/APC |
HA5445C-128 |
45dBm(32000mW) |
128 |
20.5 |
SC/APC、LC/APC |
HA5445C-256 |
256 |
17.0 |
LC/APC |
HA5446E-128 |
46dBm(40000mW) |
128 |
21.5 |
SC/APC、LC/APC |
HA5446E-256 |
256 |
18.0 |
HA5447E-256 |
47dBm(50000mW) |
256 |
19.0 |
SC/APC、LC/APC |
HA5447E-512 |
512 |
15.5 |
LC/APC |
HA5448E-256 |
48dBm(64000mW) |
256 |
20.0 |
SC/APC、LC/APC |
HA5448E-512 |
512 |
16.5 |
LC/APC |
HA5449E-256 |
49dBm(80000mW) |
256 |
21.0 |
SC/APC、LC/APC |
HA5449E-512 |
512 |
17.5 |
LC/APC |
Remark: 1. All EDFAs in HA5400 series with specified output power and output ports can be in 2U casing.
2. Please contact with Huatai for detailed datasheet of EDFA if special output power and output ports configuration is required. |
|

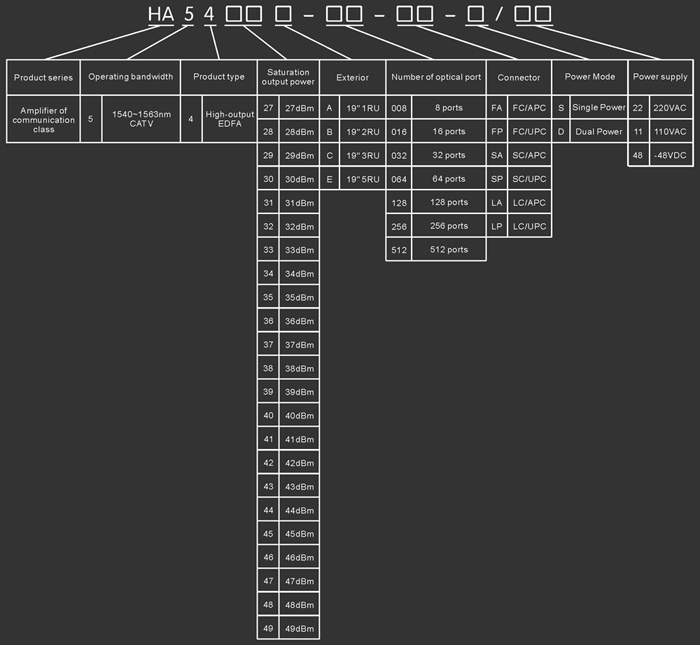

Model explanation |
| |
|
|
|
|
|
|
|
 |
