HSA4100 C-Band Single Channel Booster Optical Amplifier

HANGZHOU HUATAI OPTIC TECH. CO., LTD
	Product Classification

HSA4100 (With SNMP)
C-Band Single Channel
Booster EDFA (SBA)

Technical index

Performance			Index			Supplement
Performance			Min	Typ	Max	Supplement
Optic feature	Working wavelength range	(nm)	1528		1564	C-Band
	Input optical power ( Pi )	(dBm)	-10		+6
	Output optical power ( Po )	(dBm)	10		25
	Noise figure	(dB)		5.0		Max output,max gain
	Polarization dependence loss (PDL)	(dB)			0.3
	Polarization dependence gain (PDG)	(dB)			0.3
	Polarization mode dispersion (PMD)	(ps)			0.3
	Input/output optical isolation	(dB)	30
	Pump power leakage	(dBm)			-30
	Echo loss	(dB)	45			UPC
	Echo loss	(dB)	55			APC
	Optical supervisory channel wavelength ranges	(nm)	1500	1510	1520
General feature	SNMP network management interface		RJ45
	Communication interface		RS232
	Power supply	(V)	90		265	220VAC
	Power supply	(V)	30		72	-48VDC
	Power consumption	(W)			30
	Working temp.	(℃)	-5		+70
	Storage temp.	(℃)	-40		+85
	Working relative humidity	(%)	+5		+95
	Size (W)×(D)×(H)	(mm)	483×205×44

Remark: 1. Output power can be customized by user.

Software Function monitoring and alarm

Functions	In-Service Firm ware Upgrades
	Auto Shut Down
	Fixed Gain Control mode and Power limiting (AGC)
	Output Power Control Mode (APC)
	Pump Current Control Mode (ACC)
	Pump Maximum Working Current limit Protection
Monitors	Total Input Power
	Total Output Power
	Pump Status
	Chassis Temperature
Alarms	Loss-of-Signal Alarm
	Chassis Temperature Alarm
	Pump Temperature Alarm
	Pump Bias Alarm

CHassis length

Product series

Note :1）Monitor optical port mode options :1 . MO ( With ouput monitor optical port)

2 . MI ( With input monitor optical port )

3 . MIO ( With input and ouput monitor optical port )

2）OSC Channel optical port light management: 1 . OD ( OSC / Drop )

2 . OA ( OSC / Add )

3 . ODA ( OSC / Drop & Add )

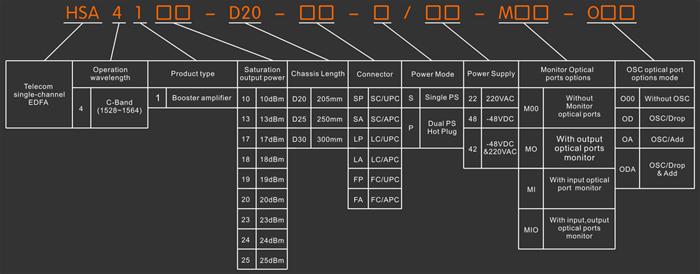

Model explanation
