HSA4400   (With SNMP)
C-Band Single Channel FGA
Fixed Gain EDFA
  HSA4400 Product Photos Download Data Sheet

Technical index

Performance
Index
Supplement
Min
Typ
Max
Optic feature
Working wavelength range(λ)
(nm)
1528

1564
C-Band
Input optical power(Pi)
(dBm)
-36

+5

Signal gain 1) (dB)
17

33

Output optical power(Po) 2)
(dBm)
13

24

Input optical power monitoring accurcy (dB)
-0.5

+0.5

Output optical power monitoring accurcy (dB)
-0.5

+0.5

Average gain accuracy (dB)
-0.5

+0.5

Gain stability (dB)
-0.25

+0.25

Noise figure
(dB)

4.7

Max gain
Polarization dependence loss (PDL)
(dB)

0.5

Polarization dependence gain (PDG)
(dB)

0.5

Polarization mode dispersion (PMD)
(ps)

0.3

Input/output optical isolation
(dB)
30

Pump power leakage
(dBm)

-30

Echo loss
(dB)
45

UPC
55

APC
Optical supervisory channel wavelength ranges
(nm)
1500
1510
1520

Transient feature Transient high-speed change of input power (μs)
50

Transient set time (μs)
1000

Change of output power
(dB)

0.6
(Pin=±3dBm)

1.2
(Pin=±5dBm)

2.0
(Pin=±7dBm)
General feature
SNMP network management interface

RJ45

Communication interface
RS232

Power supply
(V)
90

265
220VAC
30

72
-48VDC
Power consumption
(W)

30

Working temp.
(℃)
-5

+70

Storage temp.
(℃)
-40

+85

Working relative humidity
(%)
+5

+95

Size (W)×(D)×(H)
(mm)
483×205×44

Note:1 ).Signal gain by the custom optional:17dB,20dB,22dB,23dB,27dB,30dB,33dB
2 ).Saturated output power of customization,optional:13dBm,7dBm,20dBm,22dBm,23dBm,24dBm

Software Function monitoring and alarm

Functions
In-Service Firm ware Upgrades
Auto Shut Down
Fixed Gain Control mode and Power limiting (AGC)
Output Power Control Mode (APC)
Pump Current Control Mode (ACC)
Pump Maximum Working Current limit Protection
Monitors
Total Input Power
Total Output Power
Pump Status
Chassis Temperature
Alarms
Loss-of-Signal Alarm
Chassis Temperature Alarm
Pump Temperature Alarm
Pump Bias Alarm

CHassis length


Product series

Model
Signal Gain (dB)
Max Output power(dBm) (Pin=0dBm)
Monitor optical port mode
OSC Optical port mode
HSA4417-G口口-M00-O00
17
13dBm, 17dBm,
20dBm, 22dBm,
23dBm, 24dBm
Optional
Without
Without
HSA4420-G口口-M00-O00
20
HSA4422-G口口-M00-O00
22
HSA4425-G口口-M00-O00
25
HSA4427-G口口-M00-O00
27
HSA4430-G口口-M00-O00
30
HSA4433-G口口-M00-O00
33
Note :1) Monitor optical port mode options :1 . MO ( With ouput monitor optical port)
2 . MI ( With input monitor optical port )
3 . MIO ( With input and ouput monitor optical port )
2) OSC Channel optical port light management: 1 . OD ( OSC / Drop )
2 . OA ( OSC / Add )
3 . ODA ( OSC / Drop & Add )

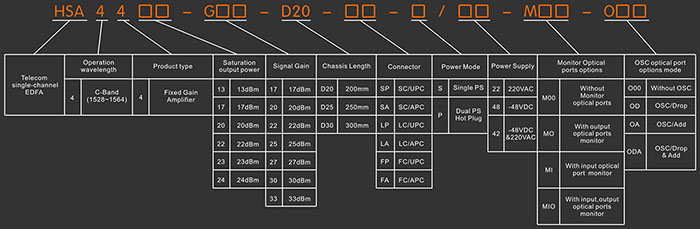

Model explanation
