SBA4100-FM01 Single Channel Full Function Small Form Factor Booster EDFA Module

p SBA4100-FM01 Single Channel Full Function Small Form Factor Booster EDFA Module - Data sheet

HANGZHOU HUATAI OPTIC TECH. CO., LTD
	Product Classification

SBA4100-FM01 (40×70×12mm)
Full Function Single Channel
Small Form Factor Booster EDFA Module

Single Channel Full Function Booster EDFA Module

SBA4100-FM01

Data Sheet

Technical index

Performance				Min.	Typ.	Max.
Optical properties	Operating wavelength range		(nm)	1528		1564
	Input optical power (pin)		(dBm)	-10		+4
	Total output power @ Pin=0dBm	SBA4113-FM01	(dBm)	13
		SBA4114-FM01		14
		SBA4115-FM01		15
		SBA4116-FM01		16
		SBA4117-FM01		17
		SBA4118-FM01		18
		SBA4119-FM01		19
	Noise figure		(dB)		4.0	5.0
	Polarization dependent gain (PDG)		(dB)			0.3
	Polarization mode dispersion (PMD)		(dB)			0.3
	Polarization dependent loss (PDL)		(ps)			0.3
	Pump power leakage		(dB)			-30
	Output & input isolation		(dB)	30
	Return loss		(dB)	45		UPC
	Return loss		(dB)	55		APC
	Fiber type			SMF-28, 900μm loose tube
	Connector type			LC, SC, FC
	Connector polish			UPC,APC
General feature	Communication interface			RS232
	Power Supply Voltage		(V)	3.1	3.3	3.5
	Power Consumption		(w)		1.0
	Operating temp.		(℃)	-5		70
	Storage temp.		(℃)	-40		+85
	Relatice humidity		(%RH)	+5		+95
	Size (W)×(L×(H)		( mm )	40×70×12

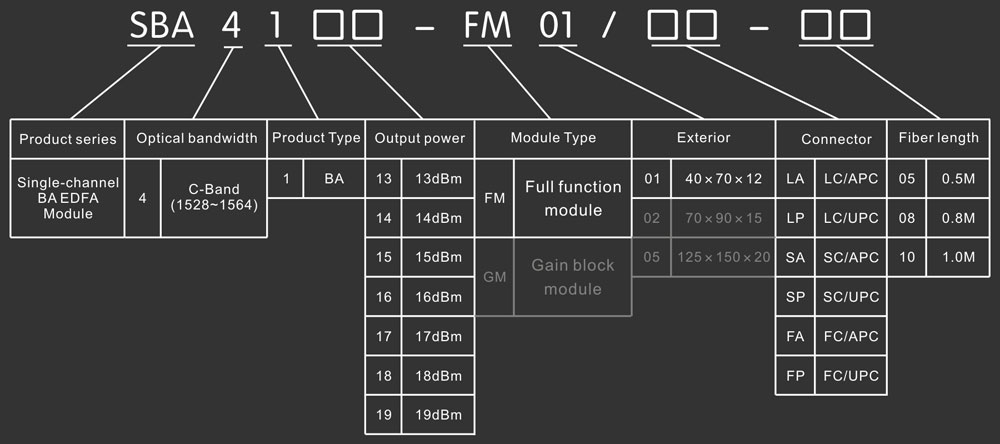

Model explanation

The parts marked in gray color belongs to other varieties of this product series, the options marked in gray color in this products series can not be specified.
