WBA4100-FM04 (100×130×19mm)
C-Band DWDM
Booster EDFA Module
  WBA4100-FM04 Product Photos Download Data Sheet
Products Booster EDFA Module WBA4100-FM04 Data Sheet

Technical index

Performace
Index
Supplement
Min
Typ
Max
Optical feature
Working wavelength range (λ)
(nm)
1529.16

1563.86
ITU 88CH
No. of working channel
(CH)
1
44

Input Optical Power (Pi)
(dBm)
-10

+6

Saturation output power(Po)
(dBm)
14

22

Variable output power range
(dB)
-6

0
Enhanced version
Signal gain
(dB)
13

27
Customer selection
Variable gain range
(dB)
-12

0
Enhanced version
Gain flatness
(dB)

0.7
1.0
Peak-to-peak
Noise figure
(dB)

5.0

Max ouput , Max. gain
Polarization dependence loss (PDL)
(dB)

0.3

Polarization dependence Gain (PDG)
(dB)

0.3

Polarization mode dispersion (PMD)
(ps)

0.3

Pump leakage power
(dB)

-30

Input/Output optic isolatioin
(dB)
30

Echo loss
(dB)
45

UPC
55

APC
Optical Supervisory Channel Wavelength
(nm)
1500
1510
1520

Transient feature Transient setting time (16 dB Add / Drop)
(μs)

700

Transient Overshoot   (16 dB Add / Drop)
(dB)
-1.5

+1.5

Transient gain changes
(dB)
-0.5

+0.5

General
feature
Communication interface
RS232

Fiber type
Coming SMF-28TM or equivalent

Pigtail buffer diameter
(μm)

900

Pigtail length
(mm)

1000

Power supply
(V)
+4.75
+5.0
+5.25

Power consumption
(W)

2.0
10

Working temp.
(℃)
-5

+70

Storage temp.
(℃)
-40

+85

Working relative humidity
(%)
5

+95

Size (W)×(D)×(H)
(mm)
100×130×19

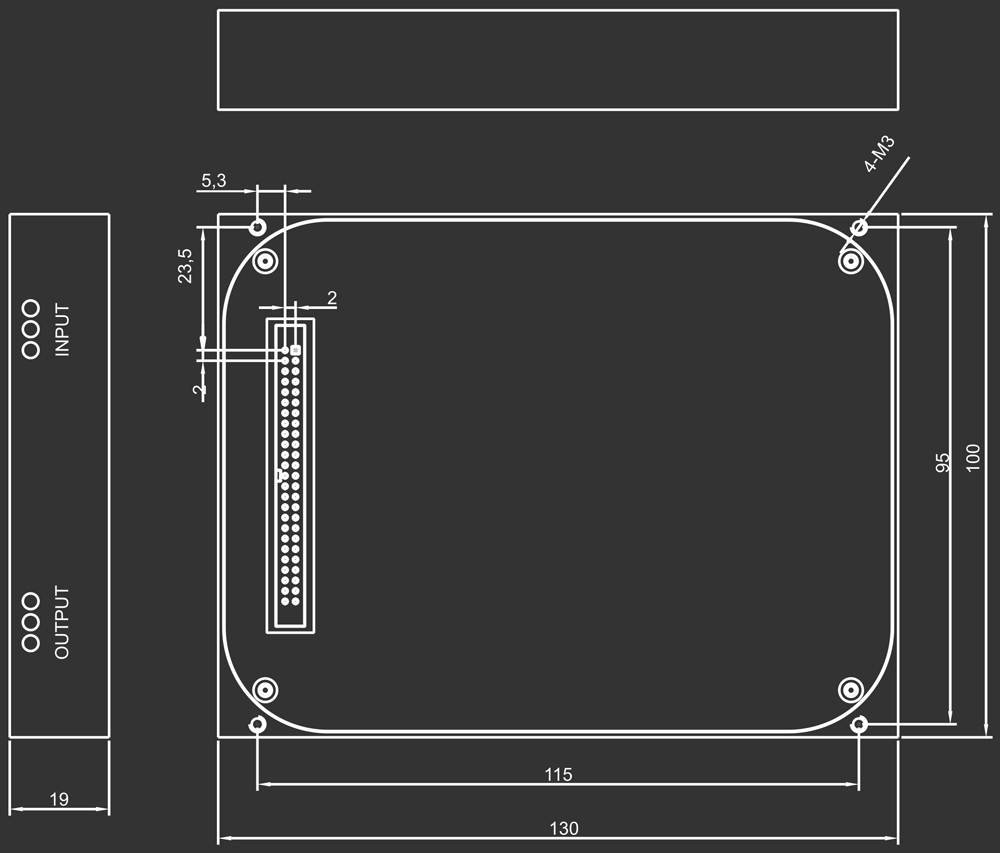

Module Ghassis length


50 Pin Defination

Pins
Description
Pins
Description
1
Power supply
2
Power supply
3
Power supply
4
Power supply
5
Power supply
6
Power supply
7
Ground
8
Ground
9
Ground
10
Ground
11
Reseved (do not connect)
12
Output reflection alarm
13
Ground
14
Resent input
15
Serial input
16
Serial output
17
Pump currnet alalrm
18
Stage 1 input LOS alarm
19
Ground
20
Ground
21
Reserved (do not connect)
22
Reserved (do not connect)
23
Reserved (do not connect)
24
Reserved (do not connect)
25
Ground
26
Reserved ( do not connect )
27
Stage 2 input LOS alarm
28
Ground
29
Stage 2 output / Gain alarm
30
Ground
31
Ground
32
Ground
33
Case temperature alarm
34
Stage 1 output / Gain alarm
35
Pump temperature alarm
36
Pin is absent ( Polarization key )
37
Amplifier disable input
38
Output power mute input
39
I2C SCL ( Optional )
40
I2C SDA ( optional )
41
Ground
42
Ground
43
Ground
44
Ground
45
Power supply
46
Power supply
47
Power supply
48
Power supply
49
Power supply
50
Power supply

Product series

Model
Stauration power(dBm)
Signal gain(dB)
Gain flatness(dB)
The Function Version
Monitor optical port mode
OSC Optical port mode
WBA4118-G口口-FM04
18
14, 17, 20, 22, 24, 27
Optional
<1.0
1, FG:
Standard
version (FGA)
2, VG:
Enhanced
Version (VGA)
1, M00:WithOut monitor
2, MO: With output monitor
3, MI: With input monitor
4, MIO: With input and output monitor
1, O00:
Without OSC
2, OD:
OSC / Add
WBA4120-G口口-FM04
20
WBA4122-G口口-FM04
22

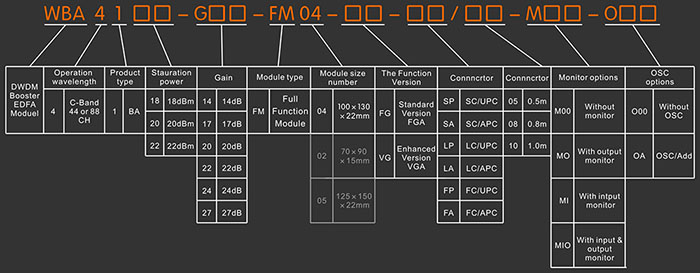

Model explanation
