Performance |
Index |
Supplement |
Optic feature |
CATV work wavelength |
(nm) |
1260~1620 |
H9222L |
1540~1563 |
H9222L/WF,H9222L/WD
|
| Pass wavelength |
(nm) |
1310, 1490 |
H9222L/WD |
| Channel Isolation |
(dB) |
≥40 |
1550 &1490nm |
| Responsivity |
(A/W) |
≥0.85 |
1310nm |
≥0.9 |
1550nm |
| Receiving power |
(dBm) |
+2 ~ -10 |
Analog TV (CNR>45dB) |
+2 ~ -20 |
Digital TV (MER<28dB) |
| Optical return loss |
(dB) |
≥55 |
|
| Optical fiber connector |
|
SC/APC |
H9222L, H9222L/WF |
LC/APC |
H9222L/WD |
RF feature |
Work bandwidth |
(MHz) |
47 ~ 862 |
|
| Flatness |
(dB) |
≤±0.75 |
47 ~ 862MHz |
| Output level |
(dBμV) |
>86 |
Analog TV (Pin=-8dBm) |
>82 |
Digital TV (Pin=-14dBm) |
| Output level adjust |
(dB) |
0 ~ 18 |
MGC |
| Return loss |
(dB) |
≥14 |
47 ~ 862MHz |
| Output impedance |
(Ω) |
75 |
|
| Output port number |
|
2 |
|
| RF tie-in |
|
F-Female |
F-male optional |
Analog TV Link feature |
Test channel |
CH |
59CH(PAL-D) |
NTSS/80CH |
| OMI |
(%) |
3.8 |
|
CNR1 |
(dB) |
54.9 |
Pin＝-2dBm |
CNR2 |
(dB) |
45.2 |
Pin＝-10dBm |
CTB |
(dB) |
≤-78 |
Pin:0~ -10dBm |
CSO |
(dB) |
≤-76 |
Pin:0~ -10dBm |
Digital TV Link feature |
OMI |
(%) |
4.3 |
|
| MER |
(dB) |
≥36 |
Pin = -15.0dBm |
≥28 |
Pin = -20.0dBm |
| BER |
(dB) |
<1.0E-9 |
Pin :+2.0 ~-20dBm |
General feature |
Power supply |
(V) |
DC+12V |
±1.0V |
| Power Consume |
(W) |
≤5.5 |
+12VDC, 420mA |
| Work temp |
(℃) |
-20 ~ +55 |
|
| Storage temp |
(℃) |
-40 ~ 85 |
|
| Work relative temp |
(%) |
5 ~ 95 |
|
| Size |
(mm) |
86×50×22 |
|
 Test data  Analog TVtest data ( PAL-D59CH, OMI＝3.8% )
|
Pin(dBm) |
+2 |
+1 |
0 |
-1 |
-2 |
-3 |
-4 |
-5 |
-6 |
-7 |
-8 |
-9 |
-10 |
|
Vo(dBμV) |
92.1 |
90.1 |
88.2 |
86.2 |
84.2 |
82.0 |
80.2 |
78.1 |
76.2 |
74.0 |
71.9 |
69.9 |
68.0 |
PAD(dB) |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
|
CNR(dB) |
58.6 |
57.6 |
55.8 |
54.9 |
54.9 |
53.8 |
52.6 |
51.2 |
50.0 |
48.9 |
47.6 |
46.4 |
45.2 |
|
CTB(dB) |
71.9 |
73.2 |
73.6 |
78.1 |
78.2 |
77.1 |
76.0 |
73.5 |
73.0 |
72.1 |
72.5 |
68.2 |
70.0 |
|
CSO(dB) |
75.9 |
76.3 |
75.1 |
75.1 |
75.2 |
76.1 |
75.2 |
74.0 |
73.3 |
71.0 |
70.4 |
67.8 |
68.8 |
Digital TV test data ( Pin=+2.0dBm~-20.0dBm )
Pin(dBm) |
Vo(dBμV) |
PAD(dB) |
MER |
BER |
POST |
PRE |
|
+2.0 |
100.0 |
15 |
38.8 |
<1.0E-9 |
<1.0E-9 |
+1.0 |
98.4 |
15 |
38.8 |
<1.0E-9 |
<1.0E-9 |
+0.0 |
96.3 |
15 |
38.8 |
<1.0E-9 |
<1.0E-9 |
-1.0 |
94.0 |
15 |
38.8 |
<1.0E-9 |
<1.0E-9 |
|
-2.0 |
91.8 |
15 |
38.8 |
<1.0E-9 |
<1.0E-9 |
|
-3.0 |
89.6 |
15 |
38.8 |
<1.0E-9 |
<1.0E-9 |
|
-4.0 |
88.2 |
15 |
38.8 |
<1.0E-9 |
<1.0E-9 |
|
-5.0 |
86.2 |
15 |
38.8 |
<1.0E-9 |
<1.0E-9 |
|
-6.0 |
83.7 |
15 |
38.8 |
<1.0E-9 |
<1.0E-9 |
|
-7.0 |
81.9 |
15 |
38.8 |
<1.0E-9 |
<1.0E-9 |
|
-8.0 |
79.8 |
15 |
38.8 |
<1.0E-9 |
<1.0E-9 |
|
-9.0 |
78.3 |
15 |
38.7 |
<1.0E-9 |
<1.0E-9 |
|
-10.0 |
76.0 |
15 |
38.6 |
<1.0E-9 |
<1.0E-9 |
|
-11.0 |
73.9 |
15 |
38.4 |
<1.0E-9 |
<1.0E-9 |
|
-12.0 |
71.8 |
15 |
38.2 |
<1.0E-9 |
<1.0E-9 |
|
-13.0 |
69.5 |
15 |
37.9 |
<1.0E-9 |
<1.0E-9 |
|
-14.0 |
68.2 |
15 |
37.2 |
<1.0E-9 |
<1.0E-9 |
|
-15.0 |
66.0 |
15 |
36.2 |
<1.0E-9 |
<1.0E-9 |
|
-16.0 |
64.2 |
15 |
35.5 |
<1.0E-9 |
<1.0E-9 |
|
-17.0 |
61.5 |
15 |
33.6 |
<1.0E-9 |
<1.0E-9 |
|
-18.0 |
59.5 |
15 |
31.9 |
<1.0E-9 |
<1.0E-9 |
|
-19.0 |
57.9 |
15 |
30.1 |
<1.0E-9 |
<1.0E-9 |
|
-20.0 |
55.7 |
15 |
28.1 |
<1.0E-9 |
<1.0E-9 |
Remak : 1. The Original Signal : MER = 39.0dB, BER <1.0E-9
2. Test Frequency : The Curve is: 858.00MHz, OMI＝4.3%
Product series
Model |
Input wavelength |
CATV operating wavelength |
Data pass wavelength |
Fiber connector |
H9222L |
1310 or 1550nm |
1260~1620nm |
-
|
SC/APC |
H9222L/WF |
1310, 1490/1550nm |
1540~1563nm |
- |
SC/APC |
H9222L/WD |
1310, 1490/1550nm |
1540~1563nm |
1310/1490nm |
LC/APC |

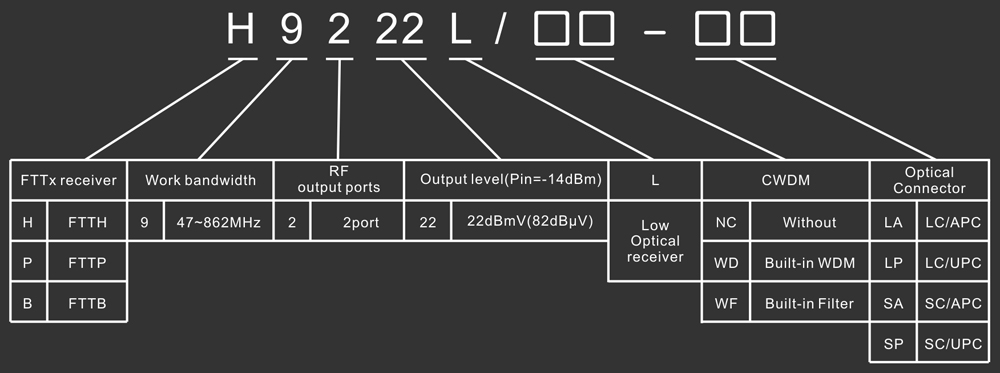

Model explanation |
