Performance |
Index |
Supplement |
Optic feature |
CATV work wavelength |
(nm) |
1260~1620 |
H9222LG |
1540~1563 |
H9222LG/WF,H9222LG/WD
|
| Pass wavelength |
(nm) |
1310, 1490 |
H9222LG/WD |
| Channel Isolation |
(dB) |
≥40 |
1550 &1490nm |
| Responsivity |
(A/W) |
≥0.85 |
1310nm |
≥0.9 |
1550nm |
| Receiving power |
(dBm) |
+2 ~ -10 |
Analog TV (CNR>45dB) |
+2 ~ -21 |
Digital TV(MER>30dB) |
| Optical return loss |
(dB) |
≥55 |
|
| Optical fiber connector |
|
SC/APC |
H9222LG, H9222LG/WF |
LC/APC |
H9222LG/WD |
RF feature |
Work bandwidth |
(MHz) |
47~862 |
|
| Flatness |
(dB) |
≤±0.75 |
45~ 1000MHz |
| Output level |
(dBμV) |
>84 |
Analog TV (Pin:+2.0~-8.0dBm) |
>82 |
Digital TV (Pin=-13dBm)
|
| ALC(AGC) character ( ΔVo ) |
(dB) |
≤±1.0
|
Pin=+2.0~-8.0dBm
|
| Output level adjust |
(dB) |
0 ~ 18 |
MGC |
| Return loss |
(dB) |
≥14 |
47~ 862MHz |
| Output impedance |
(Ω) |
75 |
|
| Output port number |
|
2 |
|
| RF tie-in |
|
F-Female |
F-male optional |
Analog TV Link feature |
Test channel |
CH |
59CH(PAL-D) |
NTSS/80CH |
| OMI |
(%) |
3.8 |
|
CNR1 |
(dB) |
54.8 |
Pin＝-2dBm |
CNR2 |
(dB) |
45.7 |
Pin＝-10dBm |
CTB |
(dB) |
≤-78 |
Pin:0~ -10dBm |
CSO |
(dB) |
≤-74 |
Pin:0~ -10dBm |
Digital TV Link feature |
OMI |
(%) |
4.3 |
|
| MER |
(dB) |
≥36 |
Pin:-17dBm |
| |
|
≥31 |
Pin=-21dBm |
| BER |
(dB) |
<1.0E-9 |
Pin : -2.0~+21.0dBm |
General feature |
Power supply |
(V) |
DC+12V |
±1.0V |
| Power Consume |
(W) |
≤5.5 |
+12VDC, 420mA |
| Work temp |
(℃) |
-20 ~ +55 |
|
| Storage temp |
(℃) |
-40 ~ 85 |
|
| Work relative temp |
(%) |
5 ~ 95 |
|
| Size |
(mm) |
86×50×22 |
|
 Test data  Analog TV test data ( PAL-D59CH, OMI＝3.8% )
|
Pin(dBm) |
+2 |
+1 |
0 |
-1 |
-2 |
-3 |
-4 |
-5 |
-6 |
-7 |
-8 |
-9 |
-10 |
|
Vo(dBμV) |
88.5 |
88.5 |
89.0 |
88.6 |
88.6 |
88.1 |
89.1 |
89.1 |
89.3 |
89.4 |
87.6 |
85.4 |
83.3 |
|
PAD(dB) |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
CNR(dB) |
59.8 |
57.7 |
56.5 |
55.6 |
54.6 |
53.7 |
52.6 |
51.7 |
50.4 |
49.3 |
48.2 |
46.6 |
45.7 |
|
CTB(dB) |
72.5 |
71.8 |
73.5 |
75.3 |
78.6 |
76.8 |
75.2 |
77.0 |
74.1 |
75.6 |
74.4 |
75.8 |
76.7 |
|
CSO(dB) |
69.2 |
70.7 |
70.1 |
70.4 |
70.7 |
72.3 |
72.2 |
72.7 |
73.1 |
73.4 |
74.0 |
73.5 |
72.8 |
Digital TV test data ( Pin=+2.0dBm~-21.0dBm )
Pin(dBm) |
Vo(dBμV) |
MER |
BER |
POST |
PRE |
|
+2.0 |
99.8 |
39.0 |
<1.0E-9 |
<1.0E-9 |
|
+1.0 |
98.5 |
38.7 |
<1.0E-9 |
<1.0E-9 |
+0.0 |
98.5 |
38.6 |
<1.0E-9 |
<1.0E-9 |
-1.0 |
99.0 |
38.6 |
<1.0E-9 |
<1.0E-9 |
|
-2.0 |
99.2 |
38.6 |
<1.0E-9 |
<1.0E-9 |
|
-3.0 |
99.0 |
38.6 |
<1.0E-9 |
<1.0E-9 |
|
-4.0 |
98.6 |
38.6 |
<1.0E-9 |
<1.0E-9 |
|
-5.0 |
99.0 |
38.5 |
<1.0E-9 |
<1.0E-9 |
|
-6.0 |
98.6 |
38.6 |
<1.0E-9 |
<1.0E-9 |
|
-7.0 |
98.4 |
38.8 |
<1.0E-9 |
<1.0E-9 |
|
-8.0 |
97.4 |
38.6 |
<1.0E-9 |
<1.0E-9 |
|
-9.0 |
95.0 |
38.6 |
<1.0E-9 |
<1.0E-9 |
|
-10.0 |
92.8 |
38.6 |
<1.0E-9 |
<1.0E-9 |
|
-11.0 |
90.6 |
38.6 |
<1.0E-9 |
<1.0E-9 |
|
-12.0 |
88.9 |
38.6 |
<1.0E-9 |
<1.0E-9 |
|
-13.0 |
87.3 |
38.2 |
<1.0E-9 |
<1.0E-9 |
|
-14.0 |
85.2 |
38.0 |
<1.0E-9 |
<1.0E-9 |
|
-15.0 |
82.9 |
38.0 |
<1.0E-9 |
<1.0E-9 |
|
-16.0 |
80.6 |
37.6 |
<1.0E-9 |
<1.0E-9 |
|
-17.0 |
78.7 |
37.0 |
<1.0E-9 |
<1.0E-9 |
|
-18.0 |
77.0 |
35.7 |
<1.0E-9 |
<1.0E-9 |
|
-19.0 |
74.7 |
34.4 |
<1.0E-9 |
<1.0E-9 |
|
-20.0 |
72.5 |
32.9 |
<1.0E-9 |
<1.0E-9 |
-21.0 |
70.5 |
31.1 |
<1.0E-9 |
<1.0E-9 |
Remak : 1. The Original Signal : MER = 39.0dB, BER <1.0E-9
2. Test Frequency : The Curve is: 858.00MHz, OMI＝4.3%
Product series
Model |
Input wavelength |
CATV operating wavelength |
Data pass wavelength |
Fiber connector |
H9222LG |
1310 or 1550nm |
1260~1620nm |
-
| SC/APC |
H9222LG/WF |
1310, 1490/1550nm |
1540~1563nm |
- |
SC/APC |
H9222LG/WD |
1310, 1490/1550nm |
1540~1563nm |
1310/1490nm |
LC/APC |

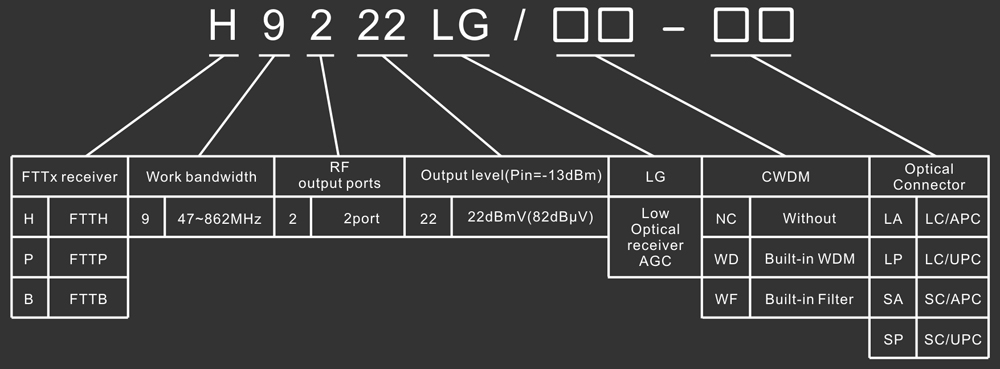

Model explanation |
