NGB-9912 ( 2 outputs )
NGB-9924 ( 4 outputs )
AGC, SNMP Bi-direction Optical receiver |
|
|
|
|
|
| |
 Technical index |
| |
| Performance |
Index |
Additional |
| Optical feature |
Operating wavelength |
(nm) |
1260~1620 |
|
Response degrees |
(A / W) |
>0.85 |
1310nm |
| >0.9 |
1550nm |
Optical AGC control range |
(dBm) |
-9~+2 |
|
Optical return loss |
(dB) |
≥50 |
|
Fiber linker |
|
LC / APC |
OptionalSC / APC , FC / APC |
RF feature |
Operating Bandwidth |
(MHz) |
47~862 |
NGB-9912, NGB-9924 / 口- 0 |
| 52~862 |
NGB-9912, NGB-9924 / 口- 4 |
| 88~862 |
NGB-9912, NGB-9924 / 口- 6 |
Flatness |
(dB) |
≤±1.0 |
|
Output level |
(dBμV) |
108±1.0 |
Pin:-9.0~+2.0dBm |
AGC feature |
(dB) |
≤±1.0 |
Pin:-9.0~+2.0dBm |
Output level adjust range |
(dB) |
-20~0 |
|
Output slope adjustment range |
(dB) |
-10~0 |
|
Return loss |
(dB) |
≥14 |
47~862MHz |
| Output Impedance |
(Ω) |
75 |
|
| RF connector |
|
F-Female |
|
| Link feature |
Test channel |
|
59CH ( PAL-D ) |
47~550MHz analog |
Digital QAM |
550-862MHz |
| OMI |
(%) |
3.8 |
|
| CNR |
(dB) |
≥52 |
Pin = -2.0dBm |
CTB |
(dB) |
≥-65 |
Vo = 108 dBμV |
CSO |
(dB) |
≥-60 |
Vo = 108 dBμV |
HUM |
(dB) |
≥-60 |
|
| Return transmit feature |
optical emission wavelength |
(nm) |
1310 |
43×4, 63×4 |
1550 |
45×4, 65×4 |
1590 |
49×4, 69×4 |
1610 |
46×4, 66×4 |
Laser type |
|
DFB |
4×D4, 6×D4 |
FP |
4×F4, 6×F4 |
Optical output power |
(dBm) |
2~4 |
|
Optical connetor type |
|
LC / APC |
Optional SC / APC , FC / APC |
RF operating bandwidth |
(MHz) |
5~42 |
NGB-9912, NGB-9924 / 口- 4 |
5~65 |
NGB-9912, NGB-9924 / 口- 6 |
Input level |
(dBμV) |
85~90 |
|
Input Impedance |
(Ω) |
75 |
|
| Laser turn-on time |
(us) |
0.5~1.0 |
|
| Laser turn-off time |
(us) |
0.5~1.5 |
|
| General feature |
SNMP network management interface |
|
RJ45 |
|
| Power supply |
(V) |
AC ( 150~265 ) V |
AC220 |
AC ( 35~90 ) V |
AC60 |
Power consumption |
(W) |
≤15 |
|
| Work Temp. |
(℃) |
-40~60 |
|
Storage temp. |
(℃) |
-40~65 |
|
Relative humidity |
(%) |
5~59 |
|
Size (W)×(D)×(H) |
|
9.4×9.4×5.9 ( " )
240×240×150 ( mm ) |
|
|
|

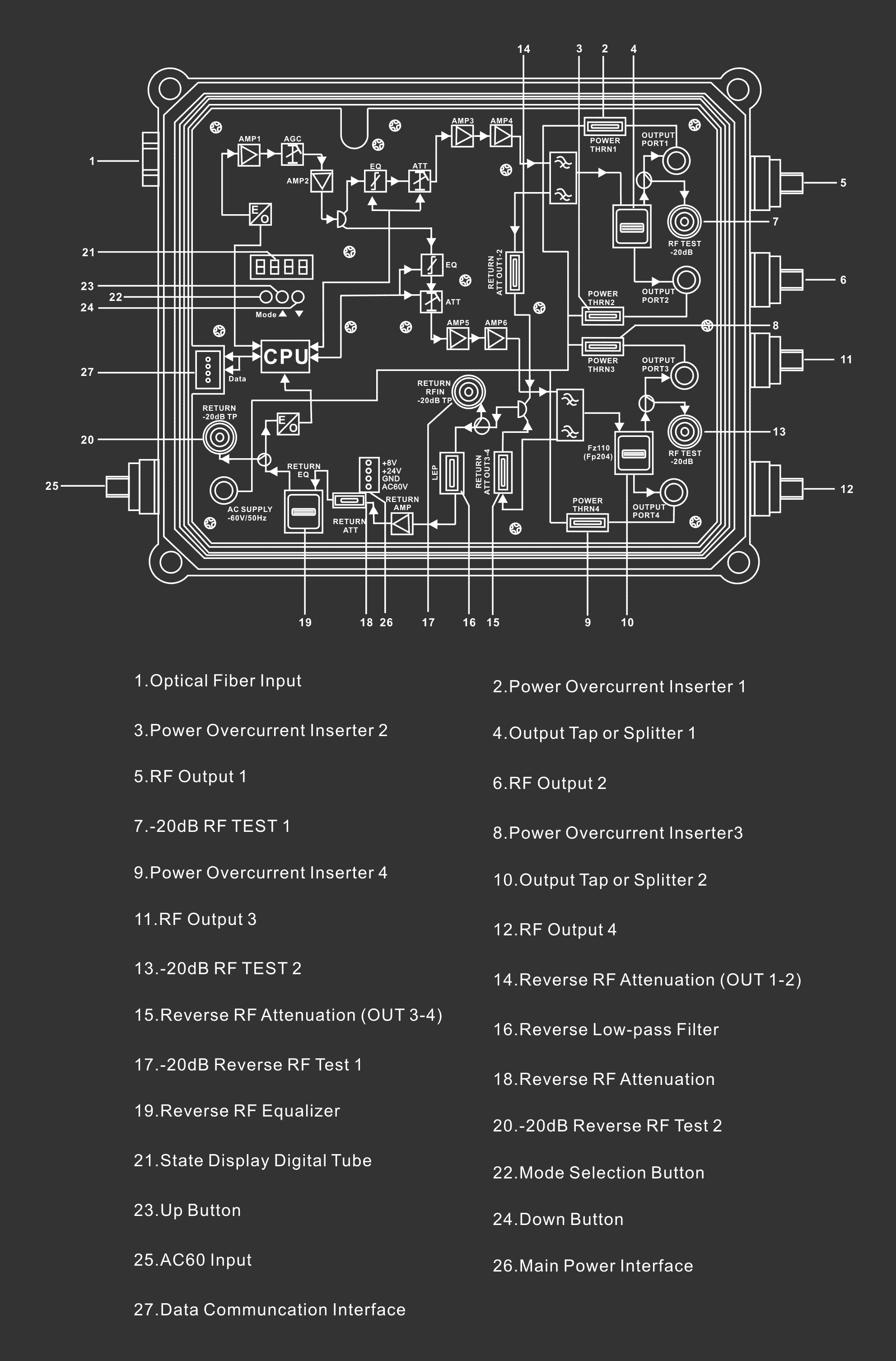

Structure diagram |
| |
|
Product series |
| |
Model number |
Under line operating wavelength |
Number of output port |
Network management ( optional ) |
Return launch ( optional ) |
NGB-9912 / N -0000 |
47~862 MHz |
2 |
Transponder with network management
|
Without return launch |
NGB-9912 / N-4××× |
52~862MHz |
With return launch, 5~42MHz |
NGB-9912 / N-6××× |
88~862MHz |
With return launch, 5~65MHz |
NGB-9912 / O -0000 |
47~862 MHz |
Transponder without network management
|
Without return launch |
NGB-9912 / O-4××× |
52~862MHz |
With return launch, 5~42MHz |
NGB-9912 / O-6××× |
88~862MHz |
With return launch, 5~65MHz |
NGB-9924 / N -0000 |
47~862 MHz |
4 |
Transponder with network management
|
Without return launch |
NGB-9924 / N-4××× |
52~862MHz |
With return launch, 5~42MHz |
NGB-9924 / N-6××× |
88~862MHz |
With return launch, 5~65MHz |
NGB-9924 / O -0000 |
47~862 MHz |
Transponder without network management
|
Without return launch |
NGB-9924 / O-4××× |
52~862MHz |
With return launch, 5~42MHz |
NGB-9924 / O-6××× |
88~862MHz |
With return launch, 5~65MHz |
|
|

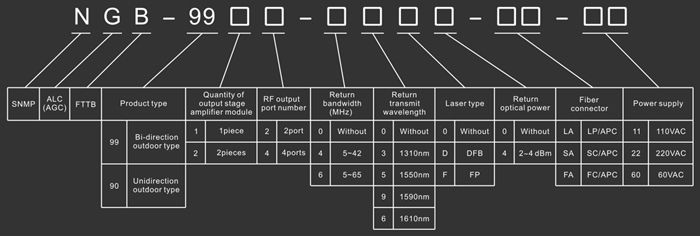

Model explanation |
| |
|
|
|
|
|
|
|
 |
