MT80 (30KHz~40GHz)
Microwave Wideband Externally Modulated Transmitters
(without RF Amp) |
|
|
|
|
|
| |
 Technical index |
| |
Performance |
Min. |
Typ. |
Max. |
Supplement |
Optical feature |
Operating wavelength |
(nm) |
1528 |
|
1564 |
C type: C-Band |
1570 |
|
1605 |
L type: L-Band |
1528 |
|
1605 |
T type: ITU-T 100GHz |
| Wavelength adjustable range |
(nm) |
-1.6 |
|
+1.6 |
T type (ITU-T) |
| Wavelength adjustable mode |
|
In steps ±0.01nm |
T type (ITU-T) |
| Wavelength stability |
(Pm/℃) |
-1 |
|
0 |
TC=20~70℃ |
| Output optical power |
(dBm) |
3.0 |
|
|
C03 |
5.0 |
|
|
C05 |
7.0 |
|
|
C07 |
9.0 |
|
|
C09 |
10.0 |
|
|
C10 |
| Side mode suppression ratio |
(dB) |
45 |
|
|
|
| Optical isolation |
(dB) |
35 |
|
|
|
| Extinction ratio |
(dB) |
20 |
|
|
|
| Spectral linewidth |
(MHz) |
|
1 |
3 |
|
| Relative intensity noise |
(dB/Hz) |
|
|
-150 |
2GHz to 20GHz |
| SBS suppression |
(dBm) |
|
|
+6.0 |
S06: 6dBm |
| |
|
+13.0 |
S13: 6&13dBm adj. |
| Optical return loss |
(dB) |
50 |
|
|
|
| Optical connector |
|
SC/APC |
Option FC/APC, LC/APC |
RF feature |
High frequency (cut-off -3dB) |
(GHz) |
6.0 |
|
|
MT80-06 |
10.0 |
|
|
MT80-10 |
15.0 |
|
|
MT80-15 |
18.0 |
|
|
MT80-18 |
20.0 |
|
|
MT80-20 |
30.0 |
|
|
MT80-30 |
40.0 |
|
|
MT80-40 |
| -3dB Low frequency |
(KHz) |
|
40 |
|
|
| In-band ripple |
(dB) |
|
|
±1.0 |
≤13GHz |
| |
|
±1.5 |
15~18GHz |
| |
|
±2.0 |
18~20GHz |
| |
|
±2.5 |
30~40GHz |
| RF return loss |
(dB) |
13 |
|
|
<10GHz |
10 |
|
|
15~18GHz |
8 |
|
|
18~20GHz |
5 |
|
|
30~40GHz |
| RF input power |
(dB) |
|
|
22 |
|
| RF input impedance |
(Ω) |
|
50 |
|
|
| RF input voltage |
(V) |
|
|
13 |
Vpp |
| Built-in RF coupling |
|
|
DC |
|
|
| RF output connector |
|
SMA-F or K-connector |
|
General feature |
Communication interface |
|
RS232 |
|
| SNMP interface |
|
RJ45 |
Network management |
| Power supply |
220VAC |
(V) |
90 |
220 |
265 |
1RU, 3RU, 2D |
-48VDC |
-30 |
-48 |
-72 |
1RU, 3RU |
+12VDC |
+11 |
+12 |
+12.5 |
MX |
| Power consume |
(W) |
|
|
15 |
A single plug-in or module |
| Operating temp. |
(℃) |
-10 |
|
+65 |
|
| Storage temp. |
(℃) |
-40 |
|
+85 |
|
| Relative humidity |
(%) |
5 |
|
95 |
|
| Size |
1U |
|
19×11.0×1.75 ( " )
483×279×44 ( mm ) |
19" stander |
3U |
|
19×14.5×5.25 ( " )
483×368×133 ( mm ) |
2D |
|
12.4×13.0×3.5 ( " )
315×330×89 ( mm ) |
Desk-top |
M1 |
|
5.7×3×1.1 ( " )
145×75×28 ( mm ) |
with RS232 |
M2 |
|
2.8×1.77×0.63 ( " )
70×45×16 ( mm ) |
Without RS232 |
|
|
| Product series |
| |
Model number |
Highest frequency |
Output power |
SBS threshold |
Operation wavelength |
Output feature |
MT80-06-C03-K/DC-S06 |
6.0GHz |
3dBm |
6dBm |
C-Band (1528~1564nm) |
K-connector DC coupling, without RF amp |
MT80-06-C05-K/DC-S06 |
5dBm |
MT80-06-C07-K/DC-S06 |
7dBm |
MT80-06-C09-K/DC-S13 |
9dBm |
6, 13dBm adj. |
MT80-06-C10-K/DC-S13 |
10dBm |
MT80-10-C03-K/DC-S06 |
10.0GHz |
3dBm |
6dBm |
MT80-10-C05-K/DC-S06 |
5dBm |
MT80-10-C07-K/DC-S06 |
7dBm |
MT80-10-C09-K/DC-S13 |
9dBm |
6, 13dBm adj. |
MT80-10-C10-K/DC-S13 |
10dBm |
MT80-15-C03-K/DC-S06 |
15.0GHz |
3dBm |
6dBm |
MT80-15-C05-K/DC-S06 |
5dBm |
MT80-15-C07-K/DC-S06 |
7dBm |
MT80-15-C09-K/DC-S13 |
9dBm |
6, 13dBm adj. |
MT80-15-C10-K/DC-S13 |
10dBm |
MT80-18-C03-K/DC-S06 |
18.0GHz |
3dBm |
6dBm |
MT80-18-C05-K/DC-S06 |
5dBm |
MT80-18-C07-K/DC-S06 |
7dBm |
MT80-18-C09-K/DC-S13 |
9dBm |
6, 13dBm adj. |
MT80-18-C10-K/DC-S13 |
10dBm |
MT80-20-C03-K/DC-S06 |
20.0GHz |
3dBm |
6dBm |
MT80-20-C05-K/DC-S06 |
5dBm |
MT80-20-C07-K/DC-S06 |
7dBm |
MT80-20-C09-K/DC-S13 |
9dBm |
6, 13dBm adj. |
MT80-20-C10-K/DC-S13 |
10dBm |
MT80-30-C03-K/DC-S06 |
30GHz |
3dBm |
6dBm |
MT80-30-C05-K/DC-S06 |
5dBm |
MT80-30-C07-K/DC-S06 |
7dBm |
MT80-30-C09-K/DC-S13 |
9dBm |
6, 13dBm adj. |
MT80-30-C10-K/DC-S13 |
10dBm |
MT80-30-C03-K/DC-S06 |
40.0GHz |
3dBm |
6dBm |
MT80-40-C05-K/DC-S06 |
5dBm |
MT80-40-C07-K/DC-S06 |
7dBm |
MT80-40-C09-K/DC-S13 |
9dBm |
6, 13dBm adj. |
MT80-40-C10-K/DC-S13 |
10dBm |
Remark: 1. Please refer to model explanation.
2. Operation wavelength options: L-Band or ITU-T standard wavelength.
3. Exterior structure: MX, 2D, 1U, 3U.
4. optical connector: FC/APC, LC/APC, SC/APC.
|
|

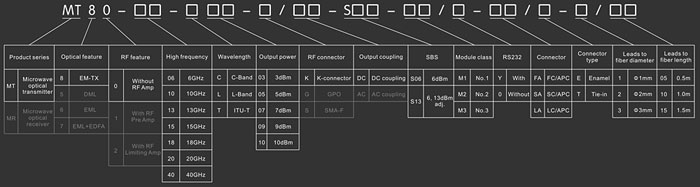

Model explanation |
| |
 1U, 3U, 2D model explanation Modular model explanation The parts marked in gray color belongs to other varieties of this product series, the options marked in gray color in this products series can not be specified. |
|
| |
|
|
|
|
|
 |
