OFSW - 8 × 1
Optical Fiber 8×1 Switch
  OFSW - 8 × 1 Product Photos Download Data Sheet

Technical index

Performance
Index
Supplement
Min.
Typ.
Max.
Optic feature
Wavelength range
(nm)
1528   1620 OFSW- 8 × 1- 口 - 口 -7
1260   1620 OFSW- 8 × 1- 口 - 口 -8
Insertion loss
(dB)
  2.0 2.5
Return loss
(dB)
55 60
Switch cross talk
(dB)
55 60
PDL
(dB)
    0.2
Switching time
(mS)
    20
Fiber type   9 / 125
Optical connector   FC/UPC, FA/APC Optional SC, LC
General feature
10/100M Ethernet interface
RJ45

Net working protocol
SNMP

Communication interface
RS232

Power supply
(VAC)
90
  265
50 / 60Hz
Work temp.
(℃)
-20
  65
Storage temp.
(℃)
-40
  85

Relative humidity
(%)
5
  95

Size (W) x (D) x (H)
19×10×1.75 ( " )
483×254×44 ( mm )
1U
11×14×3.5 ( " )
279×356×89 ( mm )
2D

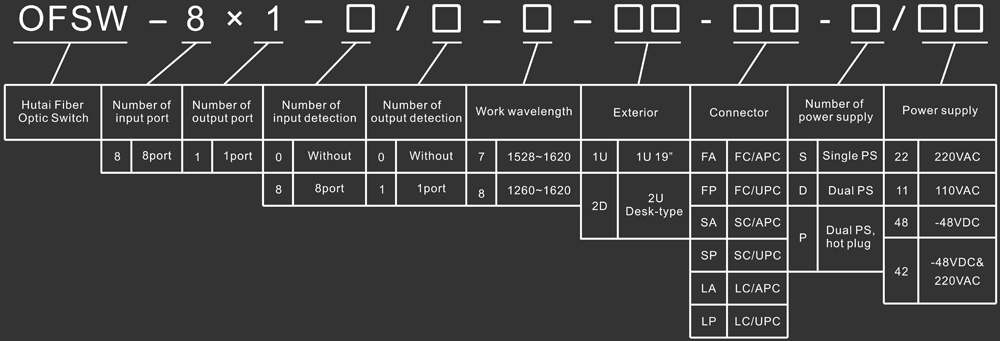

Model explanation
