Performance |
Index |
Supplement |
TX&RX Optical feature |
TX operating wavelength range |
(nm) |
1270~1610 |
CWDM, 18CH |
TX standard configuration operating wavelength
HDBS-4105CW1-TX-S |
(nm) |
1310 |
VL-TX |
1510 |
VH-TX |
1530 |
HL-TX |
1550 |
HH-TX |
| RX operating wavelength range |
(nm) |
1260~1620 |
CWDM, 18CH |
RX standard configuration operating wavelength
HDBS-4105CW1-RX-S |
(nm) |
1310 |
VL-RX |
1510 |
VH-RX |
1530 |
HL-RX |
1550 |
HH-RX |
| Number of TX output port |
|
1 |
HDBS-4105CW1-TX |
4 |
HDBS-4105CW4-TX |
| TX output power 1) |
(dBm) |
5 (≥3mW) |
|
| Number of RX input port |
|
1 |
HDBS-4113CW1-RX |
4 |
HDBS-4113CW4-RX |
| RX input power 1) |
(dBm) |
0 ~ -13 |
|
| Return loss |
(dB) |
≥50 |
|
| Optical connector |
|
SC/APC |
Option FC/APC, LC/APC |
| Laser type |
|
Un-cooling DFB |
TX with ISO |
| Optical receive tube type |
|
PIN |
RX |
SAT-IF feature |
Operating bandwidth |
(MHz) |
950~2400 |
|
| TX input level |
(dBmV) |
-25 ~ -14 |
TG type, with IF amplification |
-6 ~ +10 |
TO type, without IF amplification |
| RX output level |
(dBmV) |
-15 ~ -40 |
|
| Flatness |
(dB) |
0.5 |
40MHz |
±1.0 |
950~2400MHz |
| Input impedance |
(Ω) |
75 |
|
| RF return loss |
(dB) |
12 |
|
| RF connector |
|
F-female |
|
| C/IM3 2) |
(dB) |
≥55 |
|
| Equivalent noise intensity |
(dB/Hz) |
>115 |
|
| Link gain 3) |
(dB) |
25 |
|
General feature |
Serial interface |
|
RS232 |
HDBS-4100 |
| SNMP network management interface |
|
RJ45 |
HDBS-4100 |
| Power supply |
(V) |
95~260VAC |
|
| Power consume |
(W) |
<50 |
|
| Operating temp. |
(℃) |
-5 ~ +65 |
|
| Storage temp. |
(℃) |
-40 ~ +85 |
|
| Relative humidity |
(%) |
5~95 |
|
| Size (W)×(D)×(H) |
HDBS-4100 |
|
19×10.5×1.75 ( " )
483×267×44 ( mm )
|
|
HDBS-4200 |
|
10.4×7.8×1.38 ( " )
263×198×35 ( mm ) |
|
Remark: 1)no including CWDM insertion loss
2) C/IM3 means carrier signal peak value / three order difference peak value when using two way carrier frequency to test it.
3) -40dBm RF input test
 Link performance
Optical input(dB) |
Link loss(dB) |
CNR (dB) |
Link gain(dB) |
RF output level(dBm/Ch.) |
-13 |
14 |
30.18 |
-2 |
-38 |
-12 |
13 |
32.18 |
0 |
-36 |
-11 |
12 |
34.13 |
2 |
-34 |
-10 |
11 |
38.59 |
6 |
-32 |
-8 |
9 |
40.11 |
8 |
-30 |
-7 |
8 |
42.18 |
10 |
-28 |
-6 |
7 |
44.24 |
12 |
-26 |
-5 |
6 |
45.67 |
14 |
-24 |
-4 |
5 |
46.53 |
16 |
-22 |
-3 |
4 |
46.76 |
18 |
-20 |
-2 |
3 |
46.92 |
20 |
-18 |
-1 |
2 |
47.01 |
22 |
-16 |
0 |
1 |
47.03 |
24 |
-14 |
Remark: 1. no include CWDM insertion loss, TX Output=5dBm.
2. data satellite receiver's standard input level -60dBm ~ -30dBm.
CWDM-18 technical index (18 channel)
Performance |
CWDM-18A |
CWDM-18B |
| CWDM operating wavelength |
(nm) |
1270, 1290, 1310, 1330, 1350, 1370, |
1390, 1410, 1430, 1450, 1470, 1490, |
1510, 1530, 1550, 1570, 1590, 1610 |
| Center wavelength accuracy |
(nm) |
±0.5 |
| Channel spacing |
(nm) |
20 |
| Channel passband (@-0.5dB bandwidth) |
(nm) |
≥13 |
| Passband insertion loss (without connector) |
(dB) |
≤3.8 |
≤6.0 |
| Channel uniformity |
(dB) |
≤1.0 |
≤1.5 |
| Channel ripple |
(dB) |
≤0.5 |
| Isolation |
Adjacent |
(dB) |
≥30 |
Non-adjacent |
≥40 |
| Polarization dependence loss |
(dB) |
≤0.10 |
| Polarization mode dispersion |
(ps) |
≤0.1 |
| Directivity |
(dB) |
≥50 |
| Return loss |
(dB) |
≥45 |
| Power handling |
(mW) |
300 |
| Optical connector |
|
SC/APC, option LC/APC, FC/APC |
| Size |
Modulator |
(mm) |
110×95×15 (CWDM-M) |
19“ stander |
(") |
19×10×1.75 (CWDM-C) |
Product series  TX & RX
Model |
Optical power (dBm) |
Number of optical port |
Wavelength configuration |
Connector |
Output (TX) |
Input (RX) |
Output (TX) |
Input (RX) |
HDBS-4105CW1-TG/S-SA |
5 |
- |
1 |
- |
Standard |
SC/APC |
HDBS-4105CW4-TG/C-SA |
5 |
- |
4 |
- |
Optional |
SC/APC |
HDBS-4113CW1-RX/S-SA |
- |
> -13 |
- |
1 |
Standard |
SC/APC |
HDBS-4113CW4-RX/C-SA |
- |
4 |
Optional |
SC/APC |
HDBS-4213CW1-RX/S-SA |
- |
> -13 |
- |
1 |
Standard |
SC/APC |
HDBS-4213CW4-RX/C-SA |
- |
4 |
Optional |
SC/APC |
Remark: 1. No includingCWDM insertion loss.
2. TX can choose TO type, no IF amplify.
CWDM
Model |
Exterior |
Insertion loss (dB) |
Number of optical port |
Wavelength configuration |
Connector |
Output (TX) |
Input (RX) |
CWDM-04A-T-C/SA |
1RU |
≤3.8 |
1 |
4 |
Optional |
SC/APC |
CWDM-08A-T-C/SA |
1RU |
≤3.8 |
1 |
8 |
Optional |
SC/APC |
CWDM-16A-T-C/SA |
1RU |
≤3.8 |
1 |
16 |
Optional |
SC/APC |
CWDM-17A-T-C/SA |
1RU |
≤3.8 |
1 |
17 |
Optional |
SC/APC |
CWDM-04A-R-C/SA |
1RU |
≤3.8 |
4 |
1 |
Optional |
SC/APC |
CWDM-08A-R-C/SA |
1RU |
≤3.8 |
8 |
1 |
Optional |
SC/APC |
CWDM-16A-R-C/SA |
1RU |
≤3.8 |
16 |
1 |
Optional |
SC/APC |
CWDM-17A-R-C/SA |
1RU |
≤3.8 |
17 |
1 |
Optional |
SC/APC |
Remark: 1. Can choose module type.
2. Both of Channel amount and channel wavelength can be selected.
3. can select B type, insertion loss≤6.0
|
| |
 TX & RX Comment: wavelength configuration
| |
S (standard layout) |
C (Customer specified) |
| TX1 (VL) |
1310nm |
|
| TX2 (VH) |
1510nm |
|
| TX3 (HL) |
1530nm |
|
| TX4 (HH) |
1550nm |
|
CWDM Comment: channel wavelength configuration
1 |
1270 |
4 |
1310 |
7 |
1390 |
10 |
1450 |
13 |
1510 |
16 |
1570 |
2 |
1290 |
5 |
1350 |
8 |
1410 |
11 |
1470 |
14 |
1530 |
17 |
1590 |
3 |
1310 |
6 |
1370 |
9 |
1430 |
12 |
1490 |
15 |
1550 |
18 |
1610 |

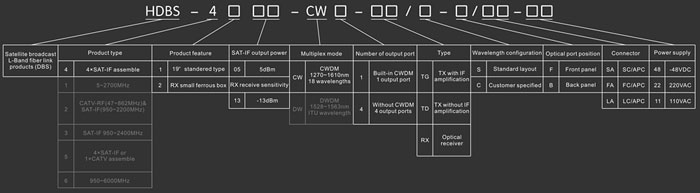

The parts marked in gray color belongs to other varieties of this product series, the options marked in gray color in this products series can not be specified. |
|
