HA5400B    (2RU)
High-power Multi-ports output CATV EDFA (1540~1563nm)
  HA5400B Product Photos Download Data Sheet
Products 1550nm EDFA HA5400B Data Sheet

Technical index

Performance
Index
Supplement
Min.
Typ.
Max.
Optical feature
Operating wavelength range
(nm)
1540

1563
CATV
Input power
(dBm)
-10

 +10

Total output power
(dBm)

41

Number of output port
(pcs)


128

Each output power
(dBm)
0

22

Difference of each output power
(dB)
-0.5

+0.5

Output optical power monitoring
(dB)

-20

Optional
Output power adjustable range
(dBm)
-6

0
Optional
Noise figure (Pin=0dBm)
(dB)

4.5
5.5
HA5400B-1x口口口

5.0
6.0
HA5400B-2x口口口
Switching time
(ms)

8.0
HA5400B-2x口口口
Polarization dependence loss
(dB)

0.3

Polarization dependence gain
(dB)


0.4

Polarization mode dispersion
(ps/nm)


0.3

Input/output isolation
(dB)
30

Pump power leakage
(dBm)

-30

Echo loss
(dB)
55


APC
General feature
Serial interface

RS232

SNMP network management interface
RJ45

Power supply
(V)
90

265
220VAC
30

72
-48VDC
Power consume
(W)

50

Work temp.
( ℃ )
-5

65

Storage temp.
( ℃ )
-40

80

Relative humidity
(%)
5

95

Size (W) × (D) × (H)
( " )
19 × 14.7 × 3.5 ( " )
2RU ( 19'' )

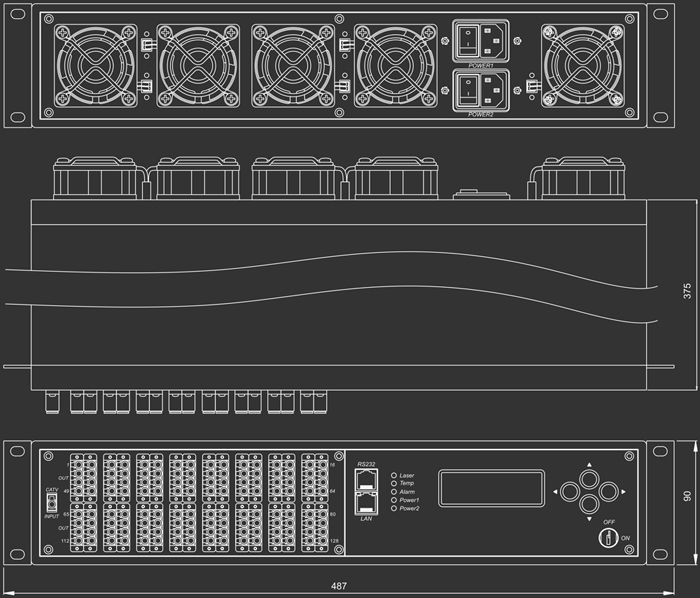

Chassis size chart

Product series

Model
Total output power
Number of output
Each port output power
Connector
HA5433B-1×016
33dBm ( 2000mW )
16
19.0
SC/APC, LC/APC
HA5433B-2×016
HA5433B-1×032
32
15.5
SC/APC, LC/APC
HA5433B-2×032
HA5434B-1×016
34dBm ( 2500mW )
16
20.0
SC/APC, LC/APC
HA5434B-2×016
HA5434B-1×032
32
16.5
SC/APC, LC/APC
HA5434B-2×032
HA5435B-1×016
 35dBm ( 3200mW )
16
21.0
SC/APC, LC/APC
HA5435B-2×016
HA5435B-1×032
32
17.5
SC/APC, LC/APC
HA5435B-2×032
HA5436B-1×016
36dBm ( 4000mW )
16
22.0
SC/APC, LC/APC
HA5436B-2×016
HA5436B-1×032
32
18.5
SC/APC, LC/APC
HA5436B-2×032
HA5436B-1×064
64
15.0
SC/APC, LC/APC
HA5436B-2×064
HA5437B-1×032
37dBm ( 5000mW )
32
19.5
SC/APC, LC/APC
HA5437B-2×032
HA5437B-1×064
64
16.0
SC/APC, LC/APC
HA5437B-2×064
HA5438B-1×032
 38dBm ( 6300mW )
32
20.5
SC/APC, LC/APC
HA5438B-2×032
HA5438B-1×064
64
17.0
SC/APC, LC/APC
HA5438B-2×064
HA5439B-1×032
39dBm ( 8000mW )
32
21.5
SC/APC, LC/APC
HA5439B-2×032
HA5439B-1×064
64
18.0
SC/APC, LC/APC
HA5439B-2×064
HA5440B-1×064
 40dBm ( 10000mW )
64
19.0
SC/APC, LC/APC
HA5440B-2×064
HA5440B-1×128
128
15.5
LC/APC
HA5440B-2×128
HA5441B-1×064
41dBm ( 13000mW )
64
20.0
SC/APC, LC/APC
HA5441B-2×064
HA5441B-1×128
128
16.5
LC/APC
HA5441B-2×128
Remark: 1. All EDFAs in HA5400B series with specified output power and output ports can be in 2U casing.
2. Please contact with Huatai for detailed datasheet of EDFA if special output power and output ports configuration is required.

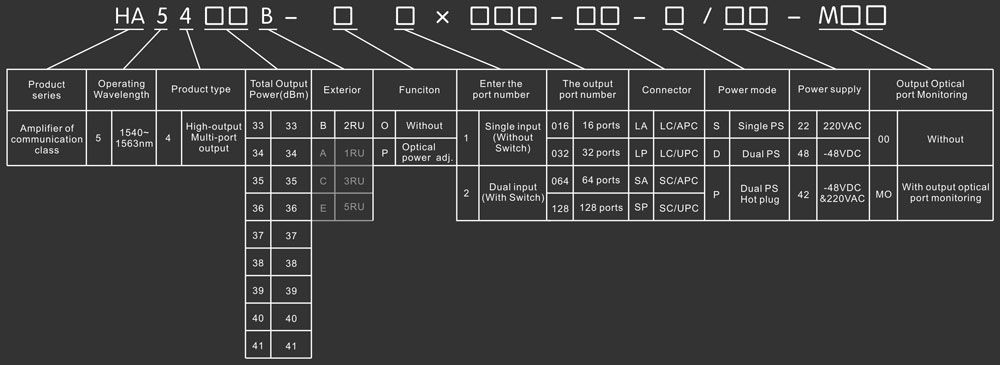

Model explanation
