 Product description HA5400B (2RU) series is a high power multi-ports optical amplifier with gain spectrum band within 1540~1563nm. It is mainly designed for the application of CATV or 1~8 continuous banding channel (ITU wavelength). It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.
HA5400B optical amplifier adopts the world's top class pump laser and active optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser.
HA5400B has extremely low noise figure, the entire unit adopts twin-stage amplification, and the pre-amplifier adopts low noise EDFA, output cascade adopts high power EYDFA. When input optical power Pin=0dBm, the noise figure of unit is ≤5.5dB Unlike other kind of product which need high optical power input to maintain lower noise figure.
HA5400B LCD at the front panel offers the work index of all equipment and warning alarms. The laser will switch off automatically if optical power is missing, which offers security protection for the laser.RS232 and RJ45 offer serial commutation and SNMP network management port. All the optical port of optical amplifier can be installed in the front panel or back panel.
HA5400B optional two-way optical input (built-in 2x1 optical switch), can be used for self-healing ring network or redundant backup network.
HA5400B with carrier-class reliability and network security management, high quality, high reliability and excellent cost performance and is ideal for system integrators and system operator.
HA5400B :19’’ 2RU rack, The total maximum output power of 41dBm ( 13000mW ),
optional output port up to 128 optional port.
Product features  Total output power optional 2000~13000mW ( 33~41dBm )
19'' 2RU rack, optional output port up to 128 optional port.
Built-in low noise pre-amplifier, not necessary EDFA cascade, extremely lower the CNR,
MER degradation of the system
Low noise figure ≤5.5dB
Perfect RS232， SNMP
Telecom level safety reliability and network management.
Simplified machine-room links, improve the system reliability.
Simple and reliable in construction/maintenance
Optional dual optical input, built-in 2 × 1 optical switch
Dual power supply optional, 1+1 backup
Can reduce the 98% device space usage
Can reduce the 85% device purchase cost
Can reduce 95% power consumption
The best cost performance in industry
Main application AM CATV
Digital CATV
DBS & MMDS
FTTx PON

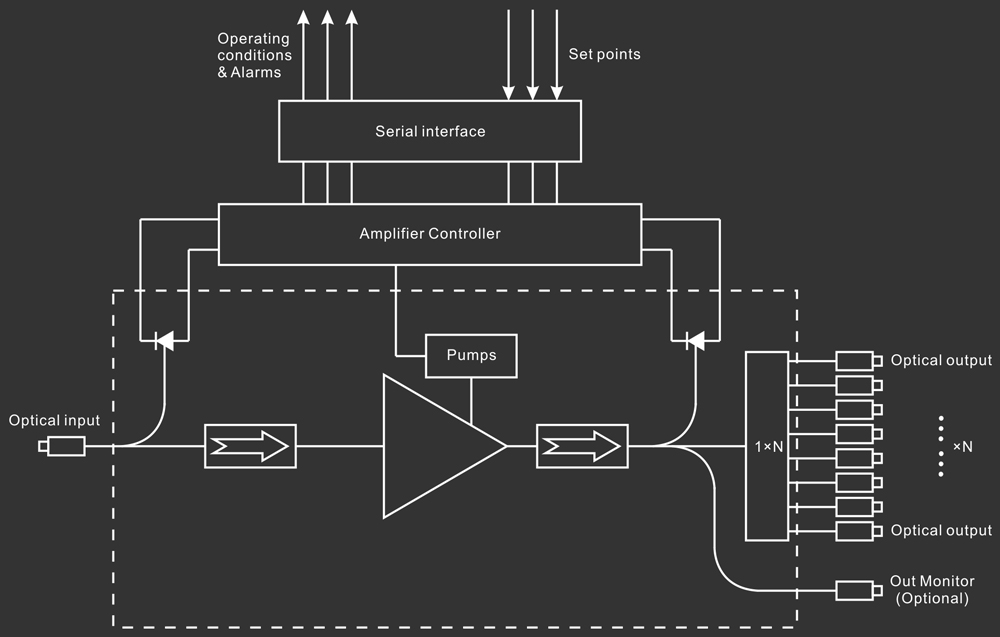

Opto-electrical diagram HA5400B-1x口口口 ( Conventional )

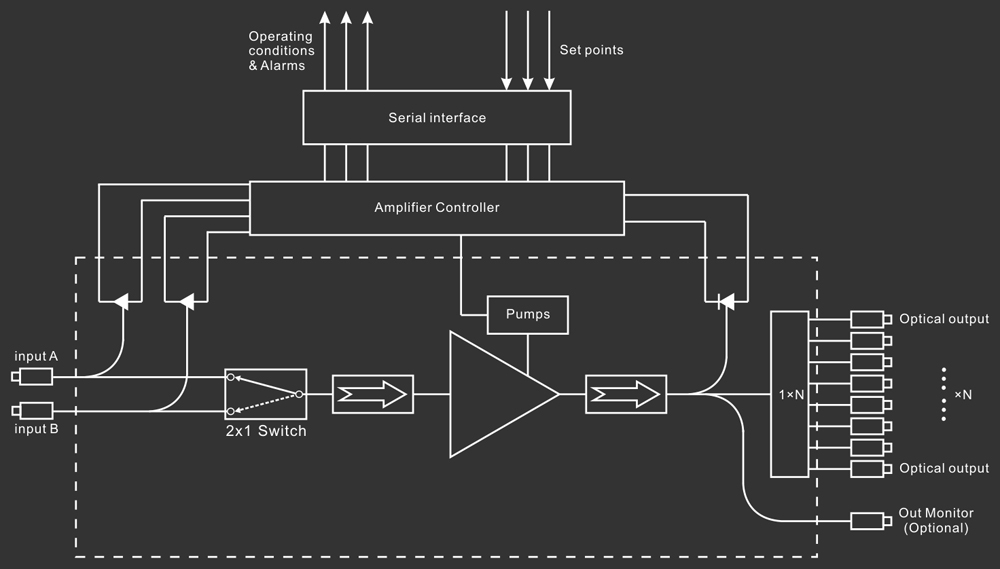

HA5400B-2x口口口 ( Built-in Optical Switch )
 Related products  HA5100 CATV Optical Amplifier ( Pout=13~27dBm, ptional multi-port output ) HA5800B multi-port output, Highly reliable high-power fiber amplifiers (Output with three wave multiplexer )
HA5400B Application reference
|
