| Product description
HA5800E (5RU) series is a low noise, high performance, FTTP high power, multi-ports optical amplifier with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently. Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.
HA5800E optical amplifier can be compatible with any FTTx PON Technology. It offers a flexible and low-cost solution for three-network integration and Fiber to the Home.
HA5800E has extremely low noise figure, the entire unit adopts twin-stage amplification, and the pre-amplifier adopts low noise EDFA, output cascade adopts high power EYDFA. When input optical power Pin=0dBm, the noise figure of unit is ≤5.5dB Unlike other kind of product which need high optical power input to maintain lower noise figure.
HA5800E optical amplifier adopts the world's top class pump laser and active optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser. RS232 and RJ45 offer serial commutation and SNMP network management port.
HA5800E LCD at the front panel offers the work index of all equipment and warning alarms. The laser will switch off automatically if optical power is missing, which offers security protection for the laser. All the optical port of optical amplifier can be installed in the front panel or back panel.
HA5800E optional two-way optical input (built-in 2x1 optical switch), can be used for self-healing ring network or redundant backup network.
HA5800E with carrier-class reliability and network security management, high quality, high reliability and excellent cost performance and is ideal for system integrators and system operator.
HA5800E optical amplifier:19" 5RU chassis, total output power up to 49dBm (80000mW),
useLC/APC, offers 256 optical outputs at most, 256pcs uplink optical ports.
Each output optical port is with built-in high performance CWDM, single fiber three
wavelengths, which can save optical fiber resources largely.
Simplified machine-room links, improve the system reliability, and largely reduce the .
network maintenance cost
Can compatible with any FTTx PON technology: EPON/GEPON, GPON
Total output power optional 25000~80000mW ( 44~49dBm )
19" 5U rack up to optional 256 up-link ports, which used in OLT; And 256 1550nm
output optical ports, multiplex the 1310/1490nm data stream.
Built-in low noise pre-amplifier, not necessary EDFA cascade, extremely lower the CNR,
MER degradation of the system
Low noise figure ≤5.5dB
Perfect RS232 ,SNMP
Telecom level safety reliability and network management
Efficient space, simple and reliable in construction/maintenance
Optional dual optical input, built-in 2 × 1 optical switch
Dual power supply optional, 1+1 backup
Can reduce the 98% device space usage
Can reduce the 85% device purchase cost
Can reduce 95% power consumption
Industry's best price-performance

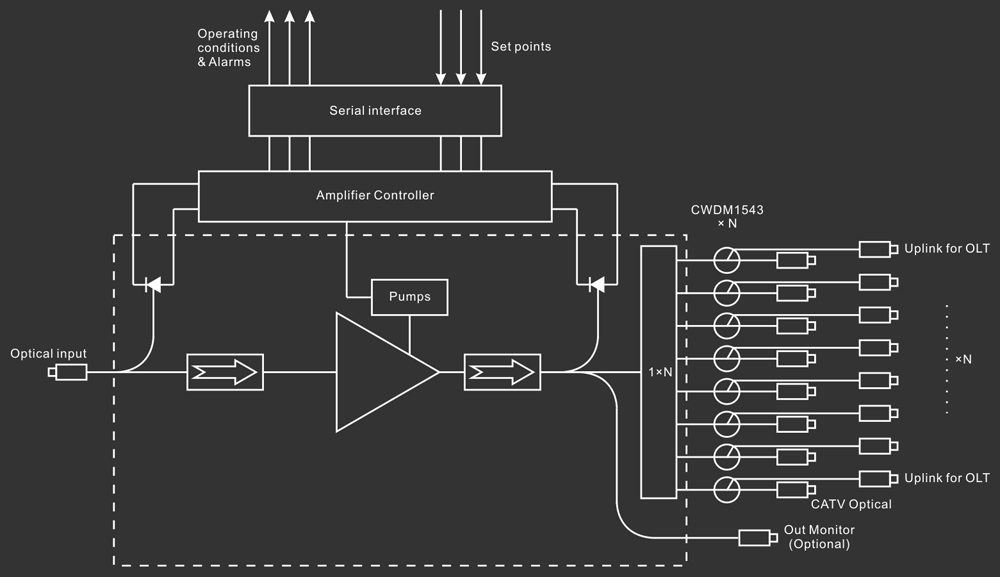

HA5800E-1x口口口 ( Conventional )

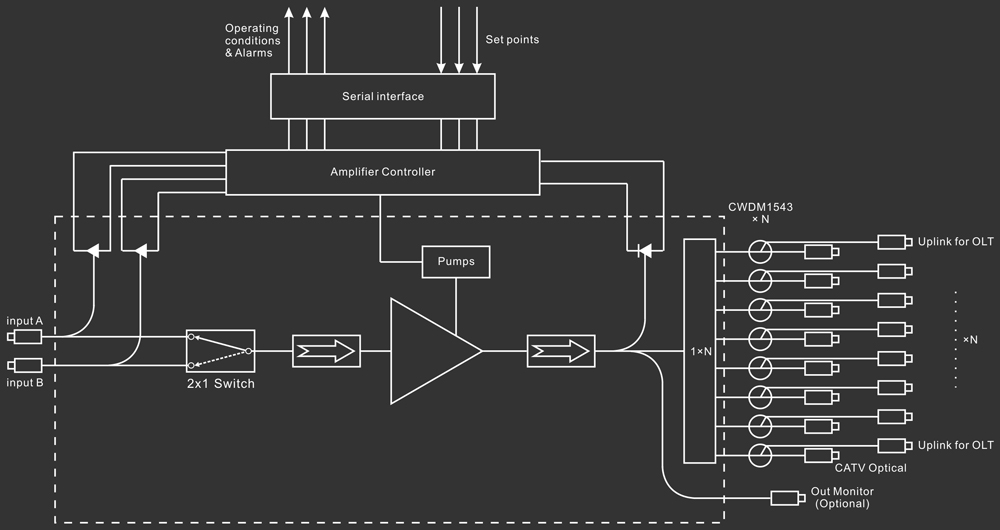

HA5800E-2x口口口 ( Built-in Optical Switch )
HA5100 CATV Optical Amplifier（Pout=13~27dBm，Optional multi-port output）
HA5400E multi-port output，Highly reliable high-power fiber amplifiers (Output without three wave multiplexer )
HA5800E Application reference
