 Optical characteristics
Performance |
Condition |
Min. |
Typ. |
Max. |
| Operating wavelength range |
(nm) |
|
1528 |
|
1563 |
| Input power (pin) |
(dBm) |
|
-10 |
|
+4 |
| Output power |
(dBm) |
Pin=0dBm |
+16 |
|
+27 |
| Noise figure |
(dB) |
Pin = - 6dBm |
|
5.0 |
6.0 |
| Polarization dependent loss (PDL) |
(dB) |
|
|
|
0.3 |
| Polarization dependent gain (PDG) |
(dB) |
|
|
|
0.5 |
| Polarization mode dispersion (PMD) |
(ps) |
|
|
|
0.5 |
| Pump power leakage |
(dB) |
|
|
|
-30 |
| Output & input isolation |
(dB) |
|
30 |
|
|
| Return loss |
(dB) |
|
40 |
|
|
| Operating temp. |
(℃) |
|
0 |
|
65 |
| Storage temp. |
(℃) |
|
-40 |
|
+85 |
| Relative humidity |
(%) |
|
+5 |
|
+85 |
| Operating voltage |
(V) |
|
+4.5 |
+5.0 |
+5.5 |
| Fiber type |
|
SMF-28, 900μm loose tube |
| Connector type |
|
SC, FC, LC, MU, E2000 |
| Connector polish |
|
UPC, APC |
| Size (W)×(D)×(H) |
|
5.9×4.9×0.9 ( " )
125×150×22 ( mm ) |
Note: The range of optical input power can be specified.
Input and output monitor PD specifications
Performance |
Min. |
Typ. |
Max. |
| Input monitor PD responsivity |
(μA/mW) |
30 |
- |
75 |
| Output monitor PD responsivity |
(μA/mW) |
1.0 |
- |
25 |
| Monitor PD reverse voltage |
(V) |
- |
5 |
20 |
| Monitor PD forward current |
(mA) |
- |
- |
10 |
| Dark current (-5v, 25℃) |
(nA) |
- |
- |
5 |
TEC cooled pump laser specifications
Performance |
Output power of 13 to 17dBm |
Output power of 18 to 23dBm |
Min. |
Typ. |
Max. |
Min. |
Typ. |
Max. |
| Pump laser threshold current |
(mA) |
- |
- |
50 |
- |
- |
50 |
| Pump laser forward current (BOL) |
(mA) |
- |
- |
500 |
- |
- |
1000 |
| Pump laser forward voltage |
(V) |
- |
- |
2.5 |
- |
- |
2.5 |
| Pump laser reverse voltage |
(V) |
- |
- |
2.0 |
- |
- |
2.0 |
| TEC current (max. △T=50℃) |
(A) |
- |
- |
1.3 |
- |
- |
1.8 |
| TEC voltage (max. △T=50℃) |
(V) |
- |
- |
2.8 |
- |
- |
3.3 |
| Thermstor resistance (25℃) |
(KΩ) |
9.5 |
10 |
10.5 |
9.5 |
10 |
10.5 |
 Pin definition The EDFA module has a DB25 Pin of male electric port. The Pin definition is as below:
Pin |
Definition |
Pin |
Definition |
1 |
VCC +5V |
14 |
GND |
2 |
VCC +5V |
15 |
GND |
3 |
VCC +5V |
16 |
GND |
4 |
VCC +5V |
17 |
GND |
5 |
NC (dual power supply is -5V) |
18 |
RS232 out (TTL) TXD |
6 |
NC (dual power supply is -5V) |
19 |
Input power alarm* |
7 |
EDFA temp. alarm*(TTL) |
20 |
NC |
8 |
Output power alarm*(TTL) |
21 |
Amplifier expiration input |
9 |
Pump bias current alarm*(TTL) |
22 |
RS232 in (TTL) RXD |
10 |
Pump temp. alarm*(TTL) |
23 |
NC |
11 |
NC |
24 |
VCC +5V |
12 |
VCC +5V |
25 |
GND |
13 |
GND |
|
|
* All warning set at the TTL high level.

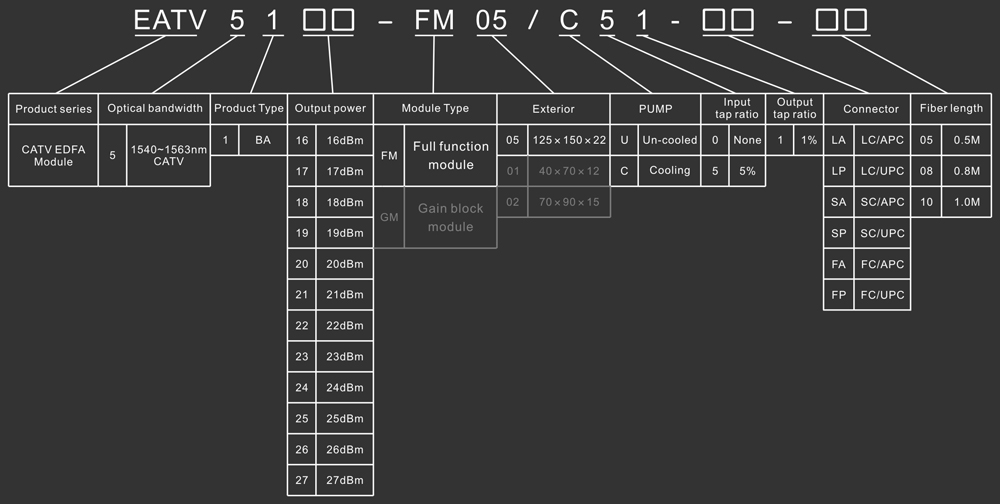

Product series
Model |
Output power (dBm)
(Pin=0dBm) |
Input power range(dBm) |
Noise figure(dB)
(Pin=0dBm) |
Input power monitor |
Output power monitor |
EATV5116-FM05 |
≥16 |
-10~+4 |
4.5 |
With |
With |
EATV5117-FM05 |
≥17 |
-10~+4 |
4.5 |
With |
With |
EATV5118-FM05 |
≥18 |
-10~+4 |
4.5 |
With |
With |
EATV5119-FM05 |
≥19 |
-10~+4 |
4.7 |
With |
With |
EATV5120-FM05 |
≥20 |
-10~+4 |
4.7 |
With |
With |
EATV5121-FM05 |
≥21 |
-10~+4 |
5.0 |
With |
With |
EATV5122-FM05 |
≥22 |
-10~+4 |
5.0 |
With |
With |
EATV5123-FM05 |
≥23 |
-10~+4 |
5.2 |
With |
With |
EATV5124-FM05 |
≥24 |
-10~+4 |
5.3 |
With |
With |
EATV5125-FM05 |
≥25 |
-10~+4 |
5.3 |
With |
With |
EATV5126-FM05 |
≥26 |
-10~+4 |
5.3 |
With |
With |
EATV5127-FM05 |
≥27 |
-10~+4 |
5.3 |
With |
With |
|
|
