 Product description Huatai BG9244 is a type of out-door optical receiver . The product builds-in RF interstage gain adjustment and equalization. Users can choose one-way or two-way high output level with the insert. The product is used in FTTB, FTTN, FTTC and used as a Rx unit of CATV. It is a type of receiver with high flexibility, excellent performance and P/P ratio.
BG9244x-LE has this four types：
BG9244A-LE-NC：operating in 1260~1620nm wavelength，used in CATV system with
analog TV channels.
BG9244D-LE-NC：operating in 1260~1620nm wavelength，used in CATV system with
analog TV channels.
BG9244A-LE-WD：built-in CWDM,RFTV operation wavelength 1550nm,pass wavelength
1310/1490nm,(links EPON、GPON ONU).
BG9244D-LE-WD：Built-in CWDM,RFTV operation wavelength 1550nm,pass wavelength
1310/1490nm,(links EPON、GPON ONU).
Product features  Excellent AGC features: Pin：–7.0dBm~+2dBm, ΔVo : ≤±1. 0dB Output level and slope are continuously adjustable in range of 0~15dB Ten-segment input optical power indication Four different configurations are applicable for different Networks: BG9244A-LE-NC is applicable for analog TV
BG9244D-LE-NC is applicable for digital TV
BG9244A-LE-WD is applicable for FTTx PON
BG9244D-LE-WD is applicable for FTTx PON

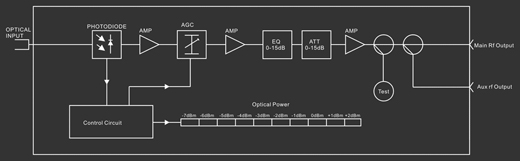

Aluminum-casting housing, waterproof, for FTTB, FTTC Excellent fuction and reliability Excellent P/P ratio Main application FTTB, FTTC HFC Block diagram BG9244x-LE-NC BG9244x-LE-WD Structure diagram |
