 Product description Huatai BG9244PL product series have the bandwidth of 47~862MHz,with ALC (AGC) function, two outputs, the output level Vo=104dBμV (Pin:-7~+2dBm). The device has built-level gain and equalization adjustment, visual display about optical power, and can choose 1way or 2 ways high level output by illustration. It applies to FTTB optical access to network, is an ONU optical receiver unit of RFTV radio network with low power, high performance, high cost- effective.
BG9244PL has this four types:
BG9244PL-A-xx-NC: operating in 1260~1620nm wavelength, used in CATV system with
analog TV channels.
BG9244PLD-xx-NC: operating in 1260~1620nm wavelength, used in CATV system with
analog TV channels.
BG9244PL-A-xx-WD: built-in CWDM,RFTV operation wavelength 1550nm,pass wavelength
1310/1490nm,(links EPON, GPON ONU).
BG9244PL-D-xxWD: Built-in CWDM,RFTV operation wavelength 1550nm,pass wavelength
1310/1490nm,(links EPON, GPON ONU).
BG9244PL parameter display have two types:
BG9244PL-x-LE: 10 LEDs display receiving optical power.
BG9244PL-x-LD: All machine built-in CPU, operating parameter displays by 3 nixie tubes.
BG9244PL die cast aluminum house adopts passivation treatment, corrosion resistance, preventing salt fog, and the internal increased fiber cable waterproof and fiber cable to enhance. This can save pigtail cable and waterproof splice box. That can greatly reduce the network construction cost. So it applies to rural FTTB CATV fiber network applications.
Product features  Excellent AGC features: Pin: –7.0dBm~+2dBm, ΔVo : ≤±1. 0dB Output level and slope are continuously adjustable in range of 0~15dB Two high level output, applies to FTTB, FTTC Two operating parameter display can be optional Four different configurations are applicable for different Networks: BG9244PL-A-xx-NC is applicable for analog TV
BG9244PL-D-xx-NC is applicable for digital TV
BG9244PL-A-xx-WD is applicable for FTTX PON
BG9244PL-D-xx-WD is applicable for FTTX PON

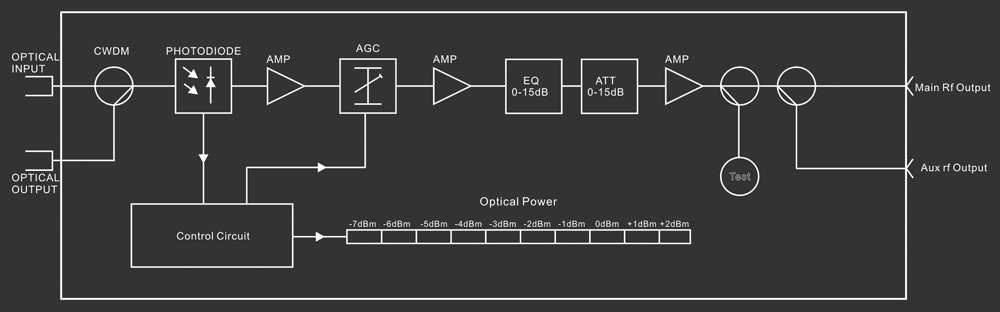

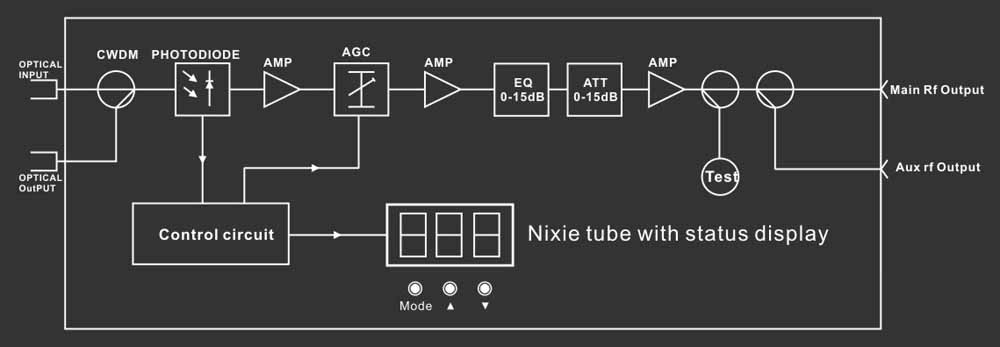

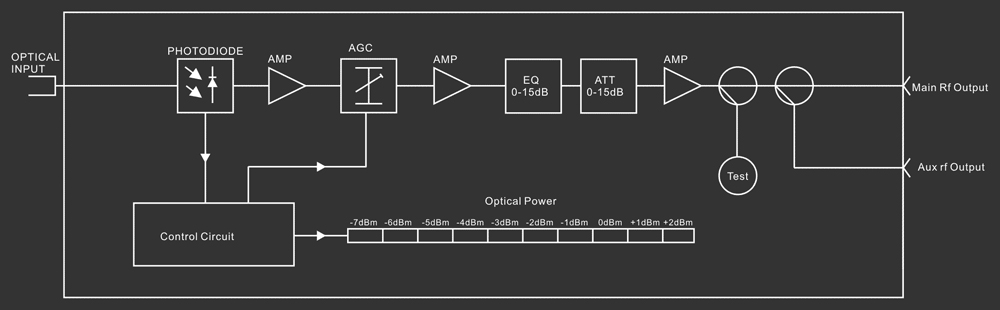

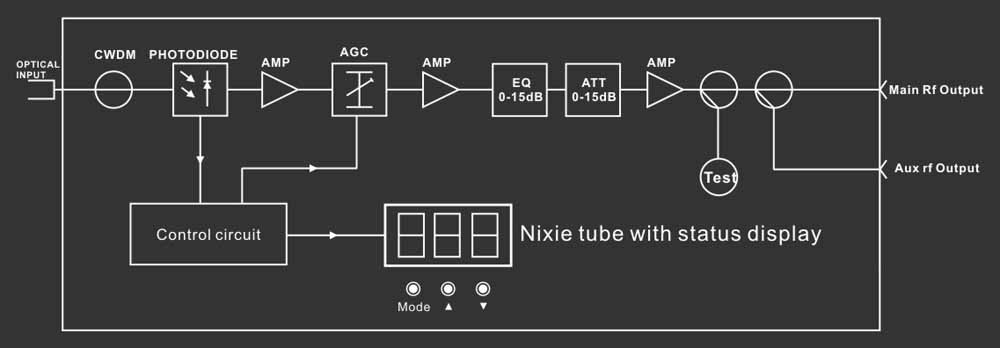

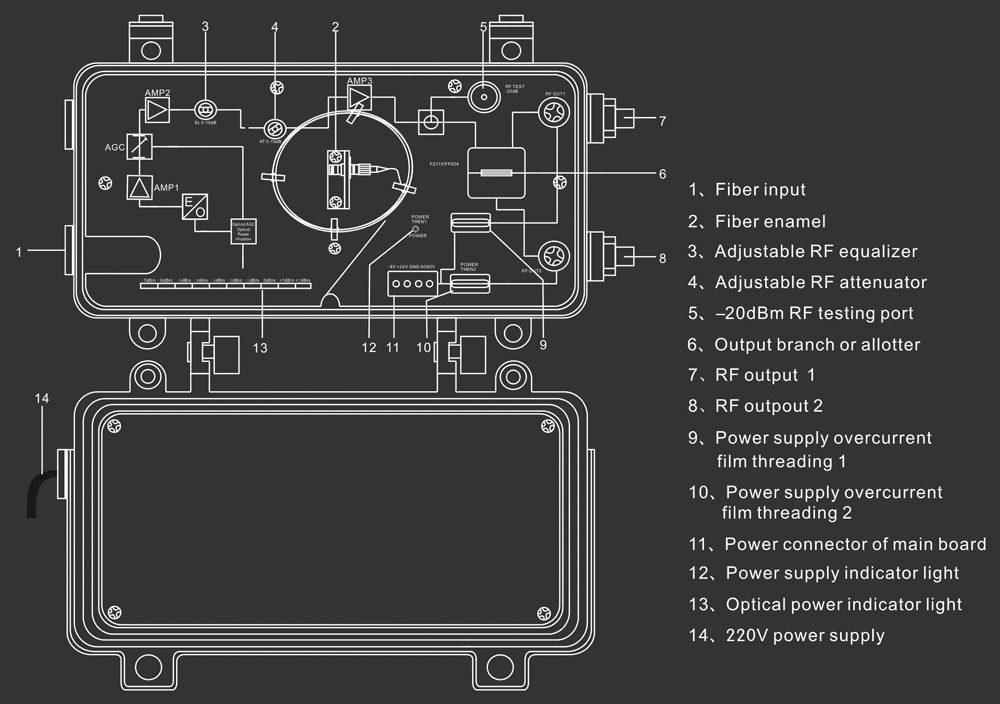

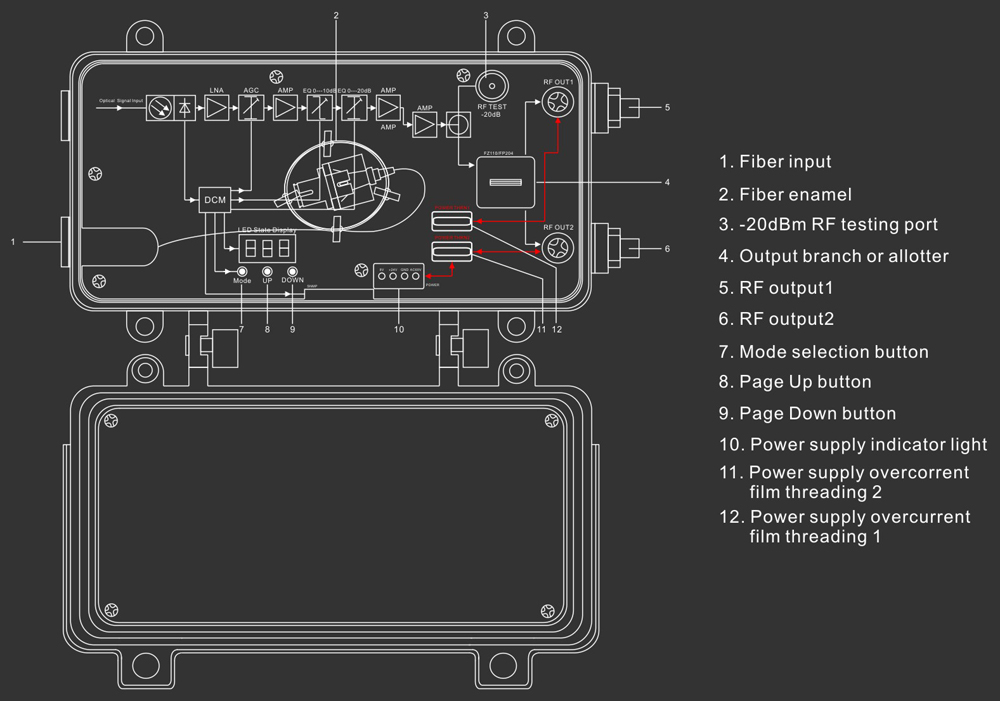

Aluminum-casting housing, waterproof, for FTTB, FTTC Excellent fuction and reliability Excellent P/P ratio Main application FTTB, FTTC HFC Block diagram LE type: BG9244PL-x-LE-NC LE type: BG9244PL-x-LE-WD LD type: BG9244PL-x-LD-NC LD type: BG9244PL-x-LD-WD Structure diagram LE type:BG9244PLx-LE-NC LD type:BG9244PL-x-LD-xx Mounting diagram
|
