H9925
FTTH bi-direction optical recevier (HFC)
  H9925 Product Photos Download Data Sheet
Products HFC optical receiver H9925 Data Sheet

Technical index

Down-stream Optical receiver
Performance
Index
Supplement
Min.
Typ.
Max.
Optical feature
Operating wavelength
(nm)
1260

1620

Receiving power
(dBm)
-6

+3

Responsivity
(A/W)
0.85

1310nm
0.9

1550nm
Return loss
(dB)
50

Input power monitor
(V/mW)

1

Optical connector
SC/APC

RF feature
Maximum operating bandwidth
(MHz)

870
087

1000
100

1100
110
Minimum operating bandwidth
(MHz)
47

Duplexer 30/47
54

Duplexer 42/54
87

Duplexer 65/87
Flatness
(dB)
-0.5

+0.5
54~870MHz
-1

+1
870~1100MHz
Output return loss
(dB)
16

54~870MHz
12

870~1100MHz
Output level
(dBmV)

25

Output level monitor
(dB)

-20

Impedance
(Ω)

75

RF connector
F-female

Link feature
CNR
(dB)
52

60CH, Pin=0dBm
CTB
(dB)

-65
99CH, Vo≤27dBmV
CSO
(dB)

-60
HUM
(dB)

-60

General feature
Power supply
(V)

+12

Power consume
(W)

4

Operating temp.
(℃)
-20

65

Storage temp.
(℃)
-40

85

Relative humidity
(%)
5

95

Size (W)×(D)×(H)
5.1×4.17×1.3 ( " )
130×106×33 ( mm )

Up-stream Reverse Transmitter
Performance
Index
Supplement
Min.
Typ.
Max.
Optical feature
Reverse transmitter operating wavelength
(nm)

1310


1550


1470

CWDM 1470

1490

CWDM 1490

1510

CWDM 1510

1530

CWDM 1530

1550

CWDM 1550

1570

CWDM 1570

1590

CWDM 1590

1610

CWDM 1610
Type of laser with return path
F-P without ISO
FPO
F-P with ISO
FPI
DFB without ISO
DFO
DFB with ISO
DFI
Output power
(dBm)
1

1.2mW
3

2mW
4

2.5mW
5

3mW
Return loss
(dB)
50

Output power monitor
(v/mW)

1

Optical connector
SC/APC

RF feature
Operating bandwidth
(MHz)
5

30
Duplexer 30/47

42
Duplexer 42/54

65
Duplexer 65/87
Flatness
(dB)
-0.5

+0.5
5~65MHz
Noise power ratio
(dB)
37

F-P, link loss≥15dB
41

DFB, link loss≥15dB
Input level
20

Return loss
16
18

5~65MHz
Input level monitor
20

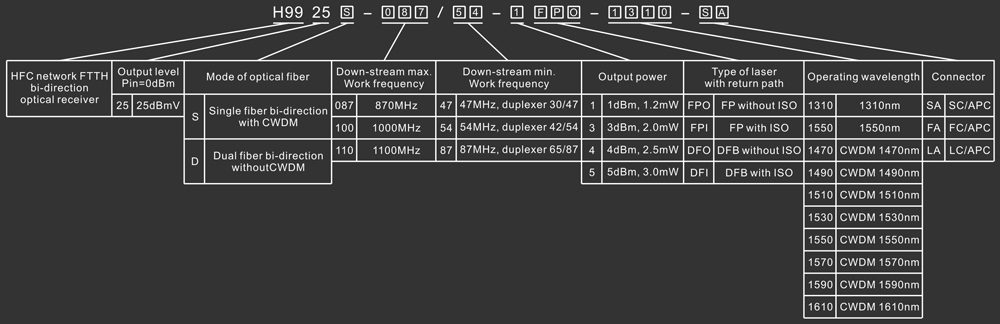

Model explanation
