MR30 (30KHz~100GHz)
Microwave Wideband High-power input type PIN Receivers |
|
|
|
|
|
| |
 Technical index |
| |
Performance |
Min. |
Typ. |
Max. |
Supplement |
Optical feature |
Operating wavelength range |
(nm) |
1280 |
|
1620 |
MR30-20 |
1280 |
|
1580 |
MR30-22 |
1480 |
|
1620 |
MR30-40, 50, 70 |
| Responsibility |
(A/W) |
0.5 |
0.5 |
|
MR30-100, 50B |
0.5 |
0.6 |
|
MR30-50A, 70 |
0.6 |
0.7 |
|
MR30-40 |
0.7 |
0.8 |
|
MR30-22 |
0.8 |
0.9 |
|
MR30-20 |
| Dark current |
(nA) |
|
5 |
50 |
|
| Polarization dependence loss |
(dB) |
|
0.6 |
1.0 |
MR30-40B |
| |
0.7 |
1.1 |
MR30-50B |
| |
0.3 |
0.5 |
MR30-70, 50A |
| |
0.5 |
0.8 |
MR30-100 |
| Optical input power range |
(dBm) |
-20 |
|
10 |
MR330-20, 22 |
-20 |
|
13 |
MR30-40, 50, 70, 100 |
| Optical return loss |
(dB) |
40 |
|
|
|
| Optical connector |
|
SC/APC |
Option FC/APC, LC/APC |
RF feature |
High frequency (cut-off -3dB) |
(GHz) |
20 |
|
|
MR30-20 |
22 |
|
|
MR30-22 |
40 |
45 |
|
MR30-40 |
48 |
55 |
|
MR30-50 |
68 |
75 |
|
MR30-70 |
90 |
95 |
|
MR30-100 |
| -3dB Low frequency |
(KHz) |
|
40 |
|
|
| In-band ripple |
(dB) |
|
|
±1.0 |
<20GHz |
| |
|
±2.0 |
22~70GHz |
| |
|
±2.5 |
100GHz |
| RF return loss |
(dB) |
8 |
10 |
|
|
| Pulse width |
(ps) |
|
10 |
12 |
MR30-40 |
| |
9 |
10 |
MR30-50 |
| |
7.5 |
8.0 |
MR30-70, 100 |
| Output impedance |
(Ω) |
|
50 |
|
|
| RF output coupled |
|
|
DC |
|
|
| RF output connector |
|
SMA-F or K-connector |
|
General feature |
Communication interface |
|
RS232 |
MX, P3 |
| SNMP interface |
|
RJ45 |
Network management |
| Power supply |
220VAC |
(V) |
90 |
220 |
265 |
1RU, 3RU, 2D |
-48VDC |
-30 |
-48 |
-72 |
1RU, 3RU |
+12VDC |
+11 |
+12 |
+12.5 |
MX |
| Power consume |
(W) |
|
|
10 |
MX |
| Operating temp. |
(℃) |
-40 |
|
+65 |
|
| Storage temp. |
(℃) |
-40 |
|
+85 |
|
| Relative humidity |
(%) |
5 |
|
95 |
|
| Size |
1U |
|
19×11.0×1.75 ( " )
483×279×44 ( mm ) |
19" stander |
3U |
|
19×14.5×5.25 ( " )
483×368×133 ( mm ) |
2D |
|
12.4×13.0×3.5 ( " )
315×330×89 ( mm ) |
Desk-top |
MX |
|
5.7×3×1.1 ( " )
145×75×28 ( mm ) |
Modulator |
|
|
| Product series |
| |
Model number |
Highest frequency |
Responsibility |
PDL |
RF output feature |
Structure |
Optical connector |
MR30-20A-S-K/DC |
20GHz |
>0.8A/W |
≤0.3dB |
Single port out, Z=50ΩK-connector, DC coupled |
1U, 3U, 2D, MX, 3P optional |
SC/APC, optional FC/APC, LC/APC |
MR30-22A-S-K/DC |
22GHz |
>0.7A/W |
≤0.3dB |
MR30-40B-S-K/DC |
40GHz |
>0.6A/W |
<1.0dB |
MR30-50A-S-K/DC |
50GHz |
>0.65A/W |
<0.5dB |
MR30-50B-S-K/DC |
50GHz |
>0.4A/W |
<1.1dB |
MR30-70A-S-K/DC |
70GHz |
>0.6A/W |
<0.85dB |
MR30-100A-S-K/DC |
100GHz |
>0.5A/W |
<0.8dB |
Remark: please refer to model explanation.
|
|
Model explanation |
| |

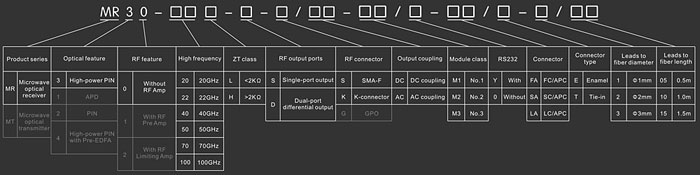

 1U, 3U, 2D model explanation Modular model explanation The parts marked in gray color belongs to other varieties of this product series, the options marked in gray color in this products series can not be specified. |
|
| |
|
|
|
|
|
 |
