![](../../../../_images/san.gif) Product description
Huatai BGL1000 product series, is a low power consumption, high index, with SNMP network management, AGC, full function FTTB optical receiver. 1000 series’ shells are aluminum wall hung (without rain-proof), Nixie tube displaying parameters.
BGL1000 series have many kinds of configurations can be optional:
1. Operation bandwidth: BGL1000-086 operation bandwidth 47~862MHz
BGL1000-100 operation bandwidth 47~1050MHz
2. RF output ports:BGL1240, two RF output ports, each 100dBμV
BGL1144, one RF output port, with 104 dBμV
3. SNMP network management can be optional(BGL1000/N), and can achieve
remote control.
4. Built-in CWDM can be optional, multiplex 1310/1490nm data stream
5. Built-in power supply or external power supply can be optional, external power supply
is convenience to repair.
![](../../../../_images/san.gif) Product features
![](../../../../_images/club1.gif) Excellent AGC performance: Pin:–7.0dBm~+2dBm,ΔVo : ≤±0.5dB
![](../../../../_images/club1.gif) Low noise(3.8% modulation, -8dBm receive, CNR≥46dB)
![](../../../../_images/club1.gif) Output level and slope can continuation adjustment
![](../../../../_images/club1.gif) High level output: one output port 104 dBμV ( AGC,PAD=6dBm ), max output level
110dBμV (PAD=0dBm)
Two output ports 100 dBμV ( AGC,PAD=6dBm ), max output level 106 dBμV (PAD=0dBm)
![](../../../../_images/club1.gif) SNMP network management optional, can achieve remote management and control
![](../../../../_images/club1.gif) Nixie tube displaying all kinds of technical parameters of the overall unit, convenience to construction and adjustment
![](../../../../_images/club1.gif) Adapts MMIC Amplifier, low power consumption
![](../../../../_images/club1.gif) The industry’s most excellent price performance
![](../../../../_images/san.gif) CNR、MER Degradation Chart

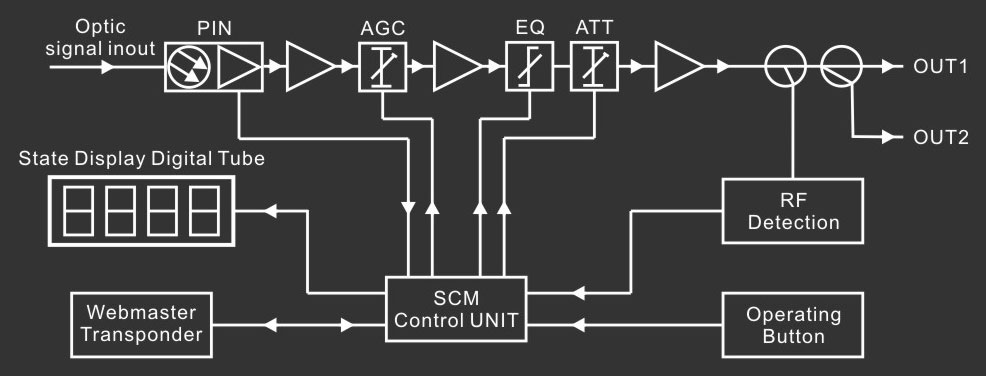

![](../../../../_images/san.gif) Functional block diagram
![](../../../../_images/san.gif) Function dispaly and operation
|
