M9130
ONU RFTV optical receive module
  M9130 Product Photos Download Data Sheet


Related Products
Product description
Huatai M9130 optical receiving module is designed for ONU optical fiber network unit. This series of product with perfect detect and remote shutting off function adopts high sensitivity receiving tube and Huatai special low noise matching circuit. It is a kind of high index, low power consumption and high cost performance RFTV optical receiving unit.
It mainly supply for ONU professional manufacture, as ONU optical receive unit.
Product feature
Extra-low noise (3.8% modulate, -10dBm receive, CNR ≥ 45dB)
Good linearity
In the range of 47~862MHz,all have good flatness (FL=1.0dB)
Mini metal shell, supply safeguards to opto-electrical sensing device
High output level can supply for many users
Low power consumption, high cost performance
State detection and remote turning off function
Main application
FTTX
HFC

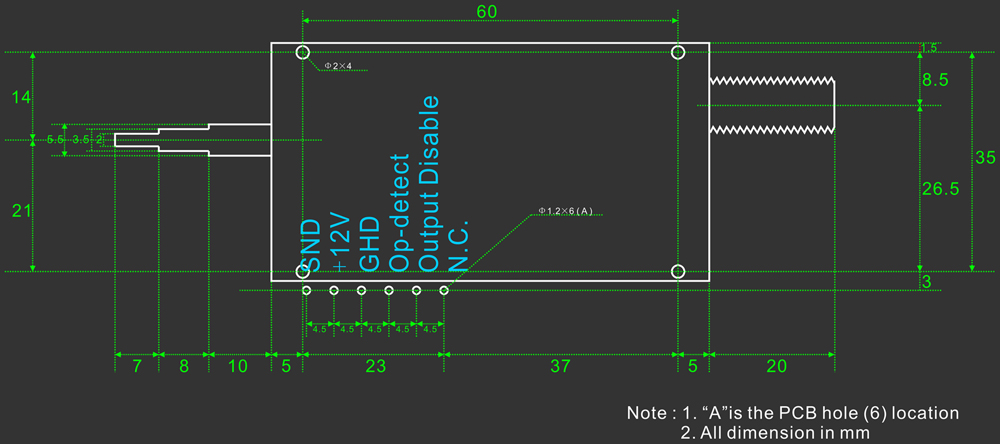

PCB mounting dimensions
