MRS-26D receiver module for optical networks with CATV and SAT-IF signal distribution, HFC and FTTx nodes.
MRS-26D: RFTV operates in 1210~1610nm wavelength.
MRS-26D/WF:built-in channel filter, RFTV operating in 1550nm wavelength.
MRS-26D/WD:built-in CWDM, RFTV operating in 1550nm wavelength ,reach GEPON ONU
through 1310/1490nm wavelength.
Ultra low noise push-pull technology
Band width of 2.7 GHz
46dB CNR (typ.) for NISC with OMI = 4% at –8dBm optical input power @ 1550nm
20dBmV RF output level (-5dBm,1550nm,OMI=4%)
Very low intermodulations
Low power consumption
Small package with single-mode fiber pigtail
Integrated optical demultiplexer (WDM filer) for RF overlay applications
Monitor voltage output and output disable input

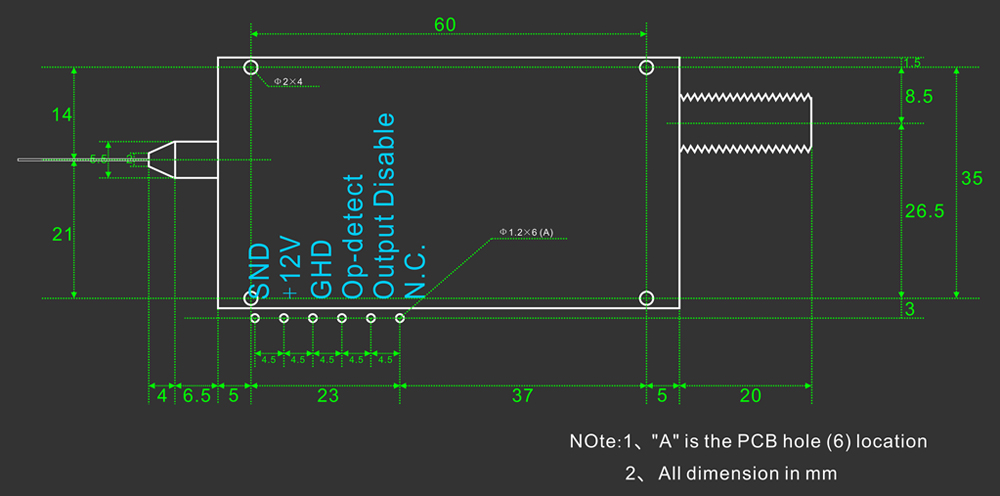

PCB mounting dimensions
