 Product description
Huatai M9226 optical receiving module is designed for ONU optical fiber network unit. This series of product with perfect detect and remote shutting off function adopts high sensitivity receiving tube and Huatai special low noise matching circuit. It is a kind of high index, low power consumption and high cost performance RFTV optical receiving unit.
It mainly supply for ONU professional manufacture,as ONU optical receive unit.
 Product feature
 Extra-low noise (3.8% modulate, -10dBm receive, CNR ≥ 45dB)
 Good linearity
 In the range of 47~862MHz,all have good flatness (FL=1.0dB)
 Mini metal shell, supply safeguards to opto-electrical sensing device
 High output level can supply for many users
 Low power consumption, high cost performance
 State detection and remote turning off function
 Main application
 FTTX
 HFC

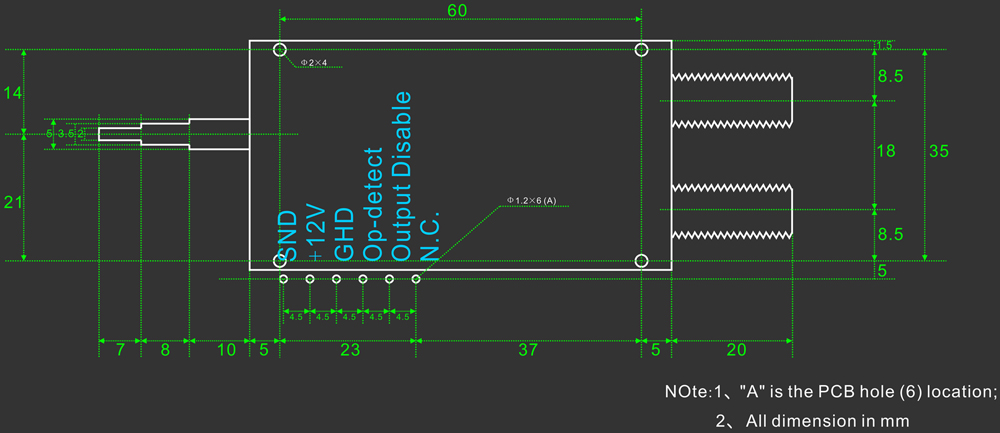

 PCB mounting dimensions
|
