HT8500HC (CATV wavelength)
HT8500HU (ITU wavelength adjustable)
Standard type Externally Modulated Optical Transmitter
(CNR1≥53dB,SBS:13, 16, 18dBm adj.)
|
|
|
|
|
|
| |
 Technical index |
| |
Performance |
Index |
Supplement |
Optic feature |
Operating wavelength |
(nm) |
1548~1563 |
HT8500HC |
ITU-TG.692 |
HT8500HU |
| Wavelength ADJ. range |
(nm) |
±1.6 ( ±200GHz ) |
HT8500HU |
| Wavelength ADJ. mode |
|
±0.05nm stepping |
HT8500HU |
| Wavelength stability |
(Pm/℃) |
-1~0 |
Tc=20~70℃ |
| Linewidth |
(MHz) |
Typ.=0.65 |
FWHM( △λ ) ( -3dB fullwidth ) |
| Side mode suppression ratio |
(dB) |
≥45 |
SMSR |
| Equivalent noise intensity |
(dB/Hz) |
≤-160 |
RIN ( 20~1000MHz ) |
| Number of output port |
|
2 |
|
| Output power of each port |
(dBm) |
13, 12, 11, 10, 8.5, 7.0, 4.5 |
2×5,2×7, 2×9, 2×10,
2×11 , 2×12 , 2×13
|
| Return loss |
(dB) |
≥50 |
|
| optical fiber connector |
|
SC / APC |
Optional LC / APC,FC / APC |
RF feature |
Work bandwidth |
(MHz) |
47-862 |
Optional 47~ 1000MHz |
| Input level |
(dBmV) |
18~28 |
AGC |
| Flatness |
(dB) |
≤±0.75 |
47~862MHz |
≤±1.5 |
862~1000MHz ( Optional ) |
| Return loss |
(dB) |
>16 |
|
| Input impedance |
(Ω) |
75 |
|
| RF port |
|
F-Female |
|
Link feature |
Transmit channel |
|
PAL-D / 60CH |
PAL-D / 99CH |
|
| CNR1 |
(dB) |
≥53.0 |
≥51.5 |
Back to back |
| CNR2 |
(dB) |
≥51.5 |
≥49.5 |
65Km optical fiber, 0dBm receive |
| CTB |
(dB) |
≤-65 |
≤-65 |
|
| CSO |
(dB) |
≤-65 |
≤-65 |
|
| SBS restrain |
(dBm) |
13, 16, 18 |
Adjustable |
General feature |
SNMP network management interface |
|
RJ45 |
|
| Communication interface |
|
RS232 |
|
| Power supply |
(VAC) |
90~265 |
50 / 60Hz |
(VDC) |
-48 |
30~72 |
| Power Consume |
(W) |
≤50 |
Single power works |
| Work temp. |
(℃) |
-5~65 |
Machine temp. control automatically |
| Storage temp. |
(℃) |
-40~85 |
|
| Relative humidity |
(%) |
5~95 |
|
| Size (W)x(D)x(H) |
|
19×15.2×1.75 ( " )
483×386×44 ( mm ) |
S-Type |
| |
19×17.9×1.75 ( " )
483×455×44 ( mm )
|
L-Type |
|
|
| Product series |
| |
Model |
Number of output port |
Output power of each port |
Operating wavelength (nm) |
SBS Restrain(dBm) |
System index(59 routes PAL-D) |
CNR1 |
CNR2 |
CTB |
CSO |
HT8525HC |
2 |
≥4.5 |
1548~1563 |
13, 16, 18
Adjustable |
≥53 |
≥51.0 |
≤-65 |
≤-65 |
HT8527HC |
2 |
≥7.0 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT8529HC |
2 |
≥8.5 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT852AHC |
2 |
≥ 10 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT852BHC |
2 |
≥ 11 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT852CHC |
2 |
≥ 12 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT852DHC |
2 |
≥ 13 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT8525HU |
2 |
≥4.5 |
1528~1563nm
ITU wavelength |
≥53 |
≥51.0 |
≤-65 |
≤-65 |
HT8527HU |
2 |
≥7.0 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT8529HU |
2 |
≥8.5 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT852AHU |
2 |
≥ 10 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT852BHU |
2 |
≥ 11 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT852CHU |
2 |
≥ 12 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
HT852DHU |
2 |
≥ 13 |
≥53 |
≥51.5 |
≤-65 |
≤-65 |
Test condition: CNR1: Tx to Rx, 0dBm receiving.
CNR2: 16dBm EDFA ( NF4.5~5.5dB ) , 65km fiber, 0dBm receiving. |
|
| |

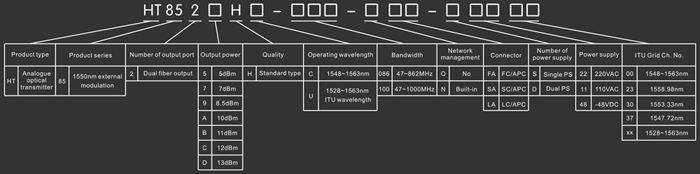

Model explanation |
|
| |
|
|
| Related product |
| |
| |
| Similar products in the field |
| |
 BKtel: BK-ES10XLb-70/190 EMCORE: 3988-SA |
|
| |
|
|
|
|
|
 |
