 Product description
Huatai VGA4700-FM06 series is a next generation variable gain optical amplifier module, which with the most excellent performance and most completes functions in the market. It adopts nowadays most excellent optical performance, most advanced electronic technology and most complete software functions. Remarkable transient suppression control technology and heat management control technology let many complicated optical functions achieved. It is the most versatile multifunction optical amplifier in the market.
This next generation variable gain amplifier module is composed with two stages amplifier: variable gain pre-amplifier (PA) and variable gain booster amplifier (BA). The gain of these two stages amplifier can be independently set in a certain range. There is a connector between the two stages amplifier, which used for mid-stage access, such as optical Add-Drop module (OADM), dispersion compensation module (DCM) and others optical modules.
VGA4700-FM06 adopts 130×212×19.5mm (including heat sinks) ultra-thin appearance; signal unit +5VDC power supply, low consumption.
VGA4700-FM06 is a device with Mid-stage Access, which according with various communication technology requirements of C-Band 44 or 88 channels DWDM system, widely used in long distance and ultra-long distance transmission network. Since its complete functions, it can be used as line amplifier, pre-amplifier, booster amplifier.
 Product features
 Nest-generation Variable Gain Amplifies Module
 With Mid-stage Access Version
 Accord with the various communication technology requirements of C-Band 44 or 88
channels DWDM system
 Adopt latest total integration electronic transient control technology
 Adopt digital control technology which can adapt to heat management
 Mid-stage versions can be set as independent pre-amplifier and booster amplifier
 Saturation large output power optional: 18dBm, 20dBm, 23dBm, 24dBm
 AGC, APC, ACC working mode
 Optical monitoring channels optional: OSC Add/Drop
 Carrier-class security and reliability
 Ultra-thin appearance 130×212×19.5mm(including heat sinks)
 Low power consumption
 Excellent cost performance in area
 Main application
 OADM optical Add-Drop multiplexing
 DCM ultra-long trunk dispersion compensation
 ASON intelligent optical network
 ROADM reconfigurable optical Add-Drop multiplexing
 Long distance and Ultra-long distance network among the cities
 Line amplifier, pre-amplifier, booster amplifier or Add-Drop multiplexing amplifier
 Related product

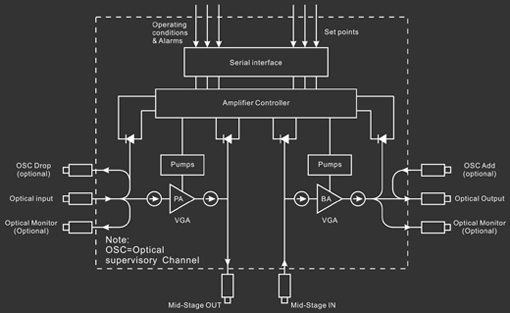

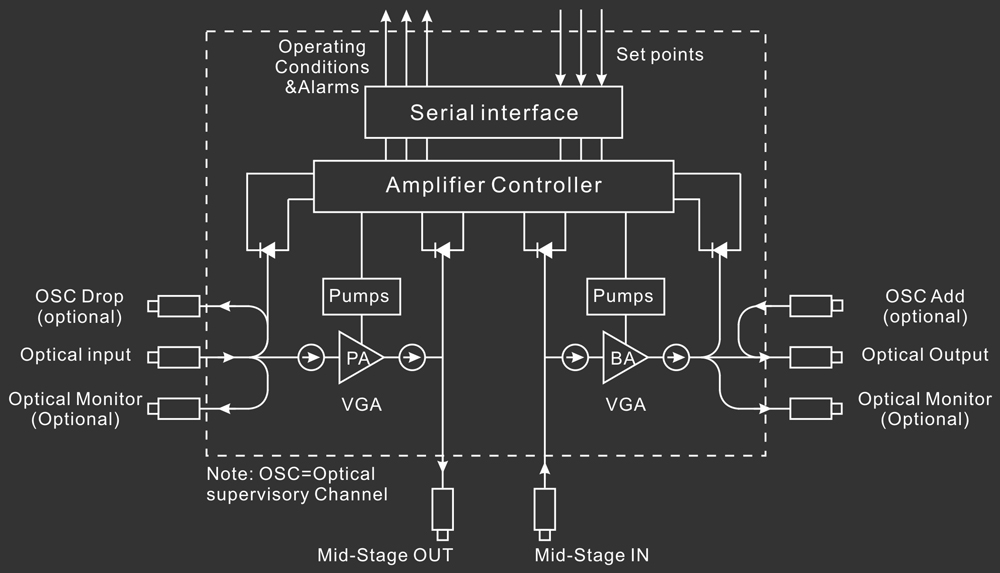

 Opto-electrical diagram
|
